HQ-861 coastal minesweepers (1987-1990)

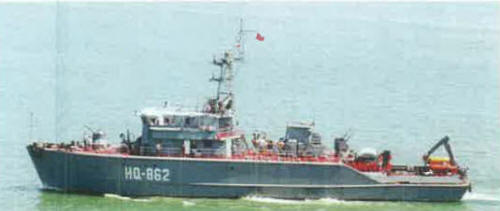

HQ-862 2000

Ships


Name No Yard No Builder Laid down Launched Comp Fate
HQ-861 (ex-БТ-143 [BT-143]) 861 137 Avangard, Petrozavodsk, USSR 28.12.1983 15.12.1984 2.9.1985 // 2.1987 in service (1990)
HQ-862 (ex-БТ-81 [BT-81]) 862 143 Avangard, Petrozavodsk, USSR 25.12.1985 24.10.1986 17.7.1987 // 2.1988 in service (1990)
HQ-863 (ex-БТ-715 [BT-715]) 863 146 Avangard, Petrozavodsk, USSR 9.12.1986 5.11.1987 16.8.1988 // 7.1989 in service (1990)
HQ-864 (ex-БТ-269 [BT-269]) 864 149 Avangard, Petrozavodsk, USSR 21.12.1987 1.10.1988 24.7.1989 // 3.1990 in service (1990)


Technical data


Displacement standard, t

401

Displacement full, t

427

Length, m

49.1

Breadth, m

8.81

Draught, m

2.43

No of shafts

2

Machinery

2 DRA-210B diesels

Power, h. p.

2000

Max speed, kts

14

Fuel, t

diesel oil

Endurance, nm(kts)

1500(10)

Armament

1 x 4 Strela-3 SAM (16 9M36), 1 x 2 - 30/71 AK-230M, 1 x 2 - 25/82 2M-3M, 6 mines, GKT-2 mechanical, AT-2 acoustic or PEMT-4 magnetic, AT-2 acoustic or ST-2 magnetic, AT-2 acoustic minesweeping gear or IT-3 USV or 2x 200m mine clearance line charges

Electronic equipment

Mius, Don-2 radars, MG-89, MG-7 Braslet sonars

Complement

45



Standard scale images


<i>HQ-861 </i>1990
HQ-861 1990


Graphics


<i>HQ-862 </i>2000
HQ-862 2000


Project history

Soviet export project 1265E coastal minesweepers.

Modernizations

None.

Naval service

No significant events.
