TB1 fast attack craft (torpedo) (1952-1960/1983)

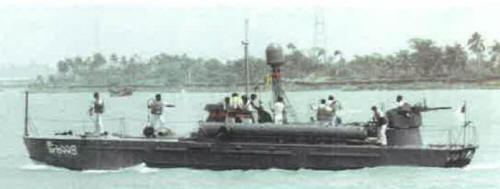

TB4 2003

Ships


Names Builders Commissioned Losses Transfers Discarding

T8221-8224 TB1-4

Wuhu SY, China or Chuangxin SY, China: T8221-8224

1952-1960 // 1983: T8221-8224

none

none

2018: T8221-8224



Technical data


Displacement standard, t

19

Displacement full, t

23

Length, m

19.3

Breadth, m

3.43

Draught, m

0.77

No of shafts

2

Machinery

2 M-50-2 diesels

Power, h. p.

2000

Max speed, kts

50

Fuel, t

diesel oil

Endurance, nm(kts)

450(35)

Armament

1 x 2 - 14.5/93, 2 x 1 - 450 TT, 6 DC

Electronic equipment

Zarnitsa radar

Complement

7



Standard scale images


<i>TB1 </i>1985
TB1 1985


Graphics


<i>TB4 </i>2003
TB4 2003


Project history

Former Chinese FACs, copies of Soviet project 123K.

Modernizations

None.

Naval service

No significant events.
