CSB-8001 patrol ships (2013-2016)
CSB-8001
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| CSB-8001 | 8001 | Vinashin, Haiphong | 23.10.2013 | in service (2019) | |||
| CSB-8002 | 8002 | Song Thu, Da Nang | 5/2015 | in service (2019) | |||
| CSB-8004 | 8004 | Song Thu, Da Nang | 2016 | in service (2019) | |||
| CSB-8005 | 805 | Song Thu, Da Nang | 2016 | in service (2019) |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 2400 |
| Length, m | 90.5 |
| Breadth, m | 14.0 |
| Draught, m | 4.00 |
| No of shafts | 2 |
| Machinery | 4 Caterpillar C3516C diesels |
| Power, h. p. | 12185 |
| Max speed, kts | 21 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 3450(18) |
| Armament | 2 x 1 - 30/77 PJ-17, 2 x 1 - 12.7/79, helicopter deck |
| Electronic equipment | 2x radars |
| Complement | 40 + 10 passengers |
Standard scale images

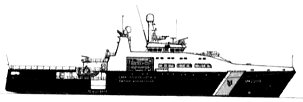

CSB-8001 2015
Graphics

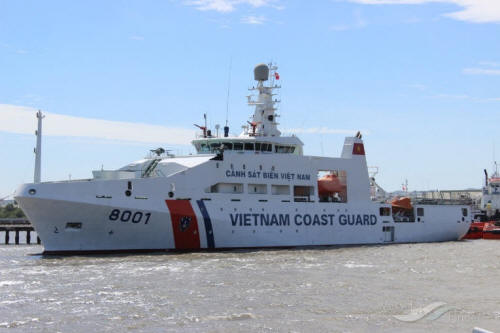

CSB-8001
Project history
Damen OPV 9014 (DN2000) design. 40t bollard pull.
Modernizations
None.
Naval service
No significant events.
