MAHAR BANDULA light frigates (1986-1988/2012)

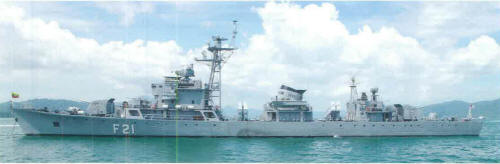

Mahar Bandula 2013
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| မဟာဗန္ဓုလ [Mahar Bandula] (ex-安顺 [Anshun]) | F21 | Huangpu SY, Guangzhou, China | 10.3.1986 | 27.6.1986 // 8.3.2012 | in service (2019) | ||
| မဟာသီဟသူရ [Mahar Thiha Thura] (ex-吉首 [Jishou]) | F23 | Huangpu SY, Guangzhou, China | 8.11.1987 | 15.6.1988 // 8.3.2012 | in service (2019) |
Technical data
| Displacement standard, t | 1425 |
|---|---|
| Displacement full, t | 1702 |
| Length, m | 103.2 |
| Breadth, m | 10.2 |
| Draught, m | 3.05 hull |
| No of shafts | 2 |
| Machinery | 2 SEMT-Pielstick 12PA6 280BTC diesels |
| Power, h. p. | 16000 |
| Max speed, kts | 25.5 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 3000(18) |
| Armament | 2 x 2 Hai Ying-2A SSM (4 C-201A), 2 x 2 - 100/56 type 79, 4 x 2 - 37/63 type 76, 2 x 5 type 81 ASWRL, 2 DCT, 2 DCR, 60 mines |
| Electronic equipment | 2x type 756, type 354, type 517, type 352C, type 343, type 347G radars, OFD-630 e/o system, SJD-5, SJC-1B sonars, 2x type 923-1 ECM suites, 2x Mk 33 RBOC decoy RL, ZKJ-3 CCS |
| Complement | 175 |
Graphics
Mahar Bandula 2013
Project history
Chinese Project 053H1 frigates, transferred after service under Chinese flag.
Modernizations
2012, both: - 2 x 2 Hai Ying-2A SSM; + 2 x 4 C-802 SSM (8 C-802)
Naval service
No significant events.
