Capana 1998

Ships

Name	No	Yard No	Builder	Laid down	Launched	Comp	Fate

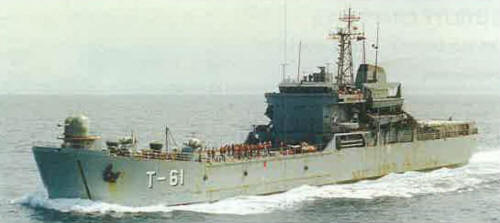

Capana	T61		Korea-Tacoma, Masan, South Korea		25.3.1983	21.6.1984	in service (2019)
Esequibo	T62		Korea-Tacoma, Masan, South Korea		25.3.1983	21.6.1984	in service (2019)
Goajira	T63		Korea-Tacoma, Masan, South Korea		1983	20.11.1984	in service (2019)
Los Llanos	T64		Korea-Tacoma, Masan, South Korea		1983	20.11.1984	in service (2019)

Technical data

Displacement standard, t	1800
Displacement full, t	4070
Length, m	104.0
Breadth, m	15.4
Draught, m	3.00 mean 4.20 max
No of shafts	2
Machinery	2 SEMT-Pielstick 16PA6V diesels
Power, h. p.	6860
Max speed, kts	15
Fuel, t	diesel oil
Endurance, nm(kts)	7500(13)
Armament	1 x 2 - 40/70 OTO-Melara Dardo, 2 x 1 - 20/90 GAM-B01, helicopter deck
Military load	1800t cargo (690t beaching), 202 troops, 4 LCVP
Electronic equipment	nav. radar, NA-18 e/o director
Complement	117

Standard scale images

Graphics

Project history

Korea-Tacoma design, improved version of LST Mk 2. All were delivered to Venezuela without armament in October 1984 (first two), December 1984 and early in 1985 and became fully operational late.

Modernizations

2011, Capana, Esequibo, Goajira; 2013, Los Llanos: - 2 x 1 - 20/90; + nav. radar (2nd)

Naval service

Goajira was heavily damaged by fire in June 1987 and was restored to service only in May 1993.
