GRAND BATANGA patrol boats (2014)
2014
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| Grand Batanga | P110 | Aresa, Barcelona, Spain | 2014 | in service (2019) | |||
| Ebodje | P111 | Aresa, Barcelona, Spain | 2014 | in service (2019) |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 125 |
| Length, m | 32.0 |
| Breadth, m | 7.30 |
| Draught, m | 1.20 |
| No of shafts | 3 waterjets |
| Machinery | 3 MAN D2862 LE4623 diesels |
| Power, h. p. | 4200 |
| Max speed, kts | 30 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 1300(20) |
| Armament | 2 x 1 - 12.7/90 |
| Electronic equipment | radar |
| Complement |

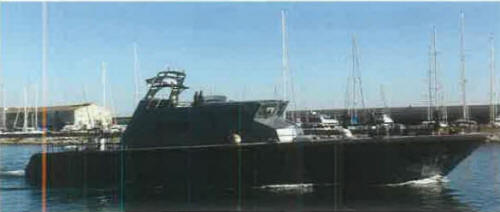

Graphics
2014
Project history
Aresa 3200 class. GRP hull.
Modernizations
None.
Naval service
No significant events.
