LOS TAQUES patrol craft (/1981-1984)
Los Cayos 2008
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comm | Fate |
|---|---|---|---|---|---|---|---|
| Los Taques | LG11 | Venezuela | // 15.5.1981 | in service (2019) | |||
| Los Cayos | LG12 | Venezuela | // 17.7.1984 | in service (2019) |
Technical data
| Displacement standard, t | 300 |
|---|---|
| Displacement full, t | 350 |
| Length, m | 26.6 |
| Breadth, m | 7.10 |
| Draught, m | 1.50 |
| No of shafts | 1 |
| Machinery | 1 diesel |
| Power, h. p. | 850 |
| Max speed, kts | 8 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 8500(8) |
| Armament | 2 x 1 - 12.7/90 |
| Electronic equipment | Raytheon radar |
| Complement | 10 |
Graphics

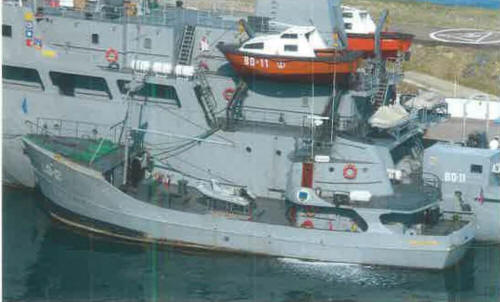

Los Cayos 2008
Project history
Small former fishing trawlers seized and transferred to the navy. Used for SAR duties.
Modernizations
None
Naval service
No significant events.
