1937

Ships

Names	Builders	Commissioned	Losses	Transfers	Discarding
رقم1 [No1], 1960s- عبد الرحمن [Abd al Rahman] رقم2 [No2], 1960s- غازى [Al Ghazi] رقم3 [No3], 1960s- دت أل ديري [Dat Al Diyari] رقم4 [No4], 1960s- جندا [Jannada]	Thornycroft, Southampton, UK: No1 - 4	summer 1937: No1 - 4	none	none	1981: 1-4

Technical data

Displacement standard, t
Displacement full, t	67
Length, m	30.5
Breadth, m	5.18
Draught, m	0.91
No of shafts	2
Machinery	2 Thornycroft diesels
Power, h. p.	280
Max speed, kts	12
Fuel, t	diesel oil
Endurance, nm(kts)
Armament	1 x 1 - 94/12 Mtn howitzer, 2 x 1 - 81/12 Stokes mortars, 2 x 1 - 7.7/94
Complement

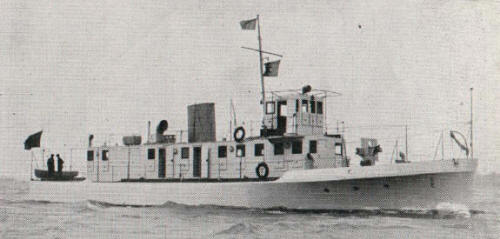

Graphics

Project history

Diesel-engined boats armed with army guns, intended for service on Tiger and Euphrates. Boats had bullet-proof plating.

Modernizations

None.

Naval service

Boats were no longer serviceable after WWII and used as barrack vessels.
