Vinnitsia 2000

Ships

Name	No	Yard No	Builder	Laid down	Launched	Comp	Fate	Modification
Суми [Sumy] (ex-МПК-43 [MPK-43], ex- Одесский комсомолец [Odesskiy Komsomolets], ex- МПК-43 [MPK-43])	U209	712	Krasnyy Metallist, Zelenodolsk, USSR	1.8.1972	2.6.1973	28.12.1974 // 1.8.1997	stricken 1998	Project 1124
Херсон [Kherson] (ex-МПК-52 [MPK-52])	U210	100	Leninskaya Kuznitsa, Kiev	30.10.1968	30.5.1971	31.12.1971 // 1.8.1997	stricken 9.1998	Project 1124
Луцьк [Lutsk] (ex-МПК-85 [MPK-85])	400, 7.1994- U200, 2005- U205	012	Leninskaya Kuznitsa, Kiev	11.1.1991	22.5.1993	30.12.1993	captured by Russia 20.3.2014	Project 1124MU

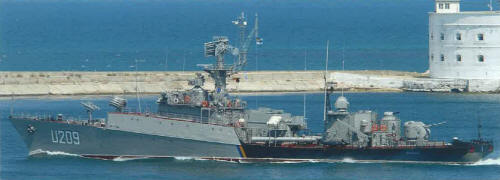

Тернопiль [Ternopyl]	U209	013	Leninskaya Kuznitsa, Kiev	23.4.1991	15.3.2002	15.2.2006	captured by Russia 21.3.2014	Project 1124MU
								Project 1124MU

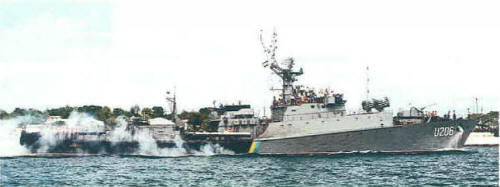

Днепр [Dnepr], 1.1996- Вiнниця [Vinnitsya]	010, 1.1996- U206	775	Krasnyy Metallist, Zelenodolsk, USSR	23.12.1975	12.9.1976	31.12.1976 // 6.1992	Border Guard, to Navy 1.1996, TS 4.2018	Project 1124P
Iзмаïл [Izmail] (ex-Измаил [Izmail]), 1.1996- Чернiгiв [Chernigiv], 7.2004- Iзмаïл [Izmail]	011, 1.1996- U205	777	Krasnyy Metallist, Zelenodolsk, USSR	12.9.1978	22.6.1980	28.12.1980 // 6.1992	Border Guard, to Navy 1.1996, to Border Guard 7.2004, stricken 1.2004	Project 1124P

Technical data

Displacement standard, t	pr. 1124: 835 pr. 1124MU: 910 pr. 1124P: 880
Displacement normal, t	pr. 1124: 990 pr. 1124MU: 1055 pr. 1124P: 960
Length, m	pr. 1124, 1124MU: 71.1 pr. 1124P: 71.2
Breadth, m	10.2
Draught, m	pr. 1124: 3.54 pr. 1124MU: 3.71 pr. 1124P: 3.60
No of shafts	3
Machinery	pr. 1124, 1124P: CODAG, 1 M-8 gas turbine + 2 M-507A diesels pr. 1124MU: CODAG, 1 M-8M gas turbine + 2 M-507A diesels
Power, h. p.	38000 (18000 + 20000)
Max speed, kts	pr. 1124: 32 pr. 1124MU: 31.6 pr. 1124P: 36.1
Fuel, t	diesel / gas turbine oil
Endurance, nm(kts)	2700(14)
Armament	U210: 1 x 2 Osa-M SAM (20 9M33), 1 x 2 - 57/50 AK-725, 2 x 2 - 533 TT, 2 x 12 RBU-6000 Smerch-2 ASWRL, 2 DCR, 18 mines pr. 1124, U209: 1 x 2 Osa-M SAM (20 9M33), 1 x 2 - 57/50 AK-725, 1 x 6 - 30/54 AK-630/M, 2 x 2 - 533 TT, 2 x 12 RBU-6000 Smerch-2 ASWRL, 2 DCR, 18 mines pr. 1124MU, U200: 1 x 2 Osa-MA2 SAM (20 9M33M), 1 x 4 Strela-3 SAM (8 9M36), 1 x 1 - 76/59 AK-176, 1 x 6 - 30/54 AK-630M, 2 x 1 - 12.7/79, 2 x 2 - 533 TT, 1 x 12 RBU-6000 Smerch-2 ASWRL, 2 DCR, 18 mines pr. 1124MU, U209: 1 x 2 Osa-MA2 SAM (20 9M33M), 1 x 4 Strela-3 SAM (8 9M36), 1 x 1 - 76/59 AK-176, 1 x 6 - 30/54 AK-630M, 2 x 2 - 533 TT, 1 x 12 RBU-6000 Smerch-2 ASWRL, 2 DCR, 18 mines pr. 1124P: 2 x 2 - 57/50 AK-725, 2 x 2 - 533 TT, 2 x 12 RBU-6000 Smerch-2 ASWRL, 2 DCR, 18 mines
Electronic equipment	U210: MR-302 Rubka, 4R-33, MR-103 Bars, Don radars, MG-322T Amgun', MG-339T Shelon', MGS-407K sonars, MI-110K/KM, MI-110R wake detectors, Bizan'-4B ECM suite U209: MR-302 Rubka, 4R-33, MR-123 Vympel-A, Don radars, MG-322T Amgun', MG-339T Shelon', MGS-407K sonars, MI-110K/KM, MI-110R wake detectors, Bizan'-4B ECM suite pr. 1124MU: MR-755 Fregat-MA1, 4R-33A, MR-123 Vympel-A, MR-212 Vaygach radars, MGK-335MS Platina-MS, MG-339T Shelon', MGS-407K sonars, MI-110K/KM, MI-110R wake detectors, Vympel-R2 ECM suite, 4x PK-16 decoy RL pr. 1124P: MR-302 Rubka, MR-103 Bars, Don radars, MG-332 Amgun', MG-339T Shelon', MGS-407K sonars, MI-110K/KM, MI-110R wake detectors, Bizan'-4B ECM suite
Complement	pr. 1124: 83 pr. 1124MU: 90 pr. 1124P: 79

Standard scale images

Graphics

Project history

Former Soviet Navy (pr. 1124) and Border Guard (pr. 1124P) corvettes. Two corvettes pr. 1124MU were completed for Ukraine.

Modernizations

None.

Naval service

Lutsk 20.3.2014 and Ternopil 21.3.2014 were captured by Russian troops at Sevastopol. They never entered Russian Navy and Russian Government invited Ukraine to take them back, but later, when Ukraine initiated civil war in Donbass, Russian Naval Staff announced that Ukrainian ships will be returned when war in Donbass ends.
