BESSANG PASS patrol craft (1976-1977)





Tirad Pass 1992

Ships


Name No Yard No Builder Laid down Launched Comm Fate
Bessang Pass 99, 1998- 75   Sumidagawa, Tokyo, Japan     1976 in service (2019)
Tirad Pass 100   Sumidagawa, Tokyo, Japan     1977 in service (2019)


Technical data


Displacement standard, t
Displacement full, t

275

Length, m

44.0

Breadth, m

7.40

Draught, m

1.50

No of shafts

2

Machinery

2 MTU 12V538 TB82 diesels

Power, h. p.

4030

Max speed, kts

30

Fuel, t

diesel oil

Endurance, nm(kts)2300(14)
Armament

2 x 2 - 12.7/90

Electronic equipment

radar

Complement

32



Graphics

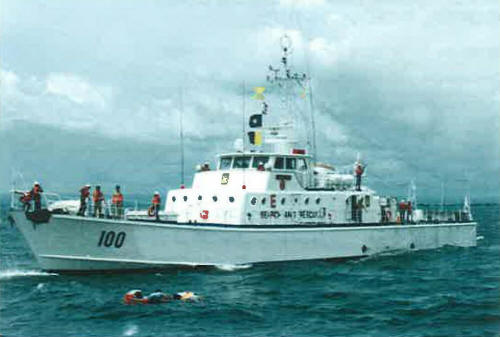

<i>Tirad Pass </i>1992
Tirad Pass 1992


Project history

SAR craft.

Modernizations

None.

Naval service

Bessang Pass ran aground and was lost in September 1983, but later salvaged, refitted and returned to service in August 1998.
