AL HASBAH minehunters (1992-1993/2006)

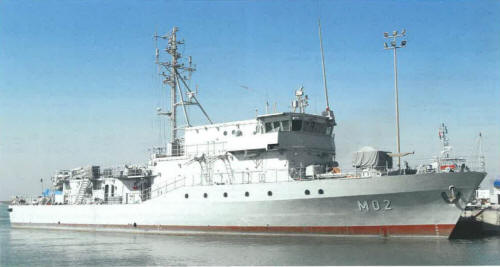

Al Murjan 2010
Ships
| Name | No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|
| الحاسبه [Al Hasbah] (ex-Weiden) | M01 | Abeking & Rasmussen, Lemwerder, Germany | 1.3.1990 | 14.5.1992 | 3.3.1993 // 30.6.2006 | in service (2020) |
| المرجان [Al Murjan] (ex-Frankentahl) | M02 | Lürssen, Vegesack, Germany | 5.12.1989 | 6.3.1992 | 16.12.1992 // 30.6.2006 | in service (2020) |
Technical data
| Displacement standard, t | 590 |
|---|---|
| Displacement full, t | 690 |
| Length, m | 51.0 pp 54.4 oa |
| Breadth, m | 9.21 |
| Draught, m | 2.60 hull 3.30 propellers |
| No of shafts | 2 |
| Machinery | 2 MTU 16V396 TB84 diesels |
| Power, h. p. | 5550 |
| Max speed, kts | 18 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | |
| Armament | 2 x 4 Stinger-Fliegerfaust SAM (8 FIM-92), 1 x 1 - 40/70 Bofors 350, 2 x 1 - 12.7/90, 60 mines, 2x Pinguin B3 USV |
| Electronic equipment | SPS-64(v) radar, MSP 500 e/o system, DSQS-11M sonar, DR-2000 ECM suite, 2x Hot Dog/Silver Dog decoy RL, SATAM CCS |
| Complement | 43 |
Standard scale images
Al Hasbah 2010
Graphics
Al Murjan 2010
Project history
The Type 332 fast minesweepers, improved Type 343 with Pinguin drones instead of sweeps. Transferred after service in the Bundesmarine.
Modernizations
None.
Naval service
No significant events.
