Abu Dhabi 2007

Ships

Name	No	Yard No	Builder	Laid down	Launched	Comp	Fate

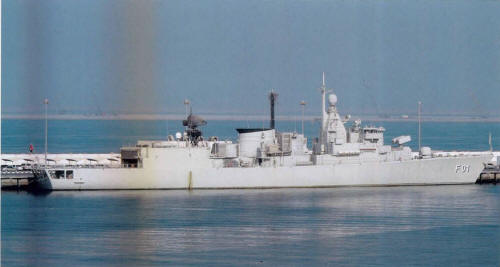

أبو ظبي [Abu Dhabi] (ex-Abraham Crijnssen)	F01	357	KM De Schelde, Vlissingen, Netherlands	25.10.1978	16.5.1981	6.1.1983 // 31.10.1997	stricken 2008
الإميرة [Al Emirat] (ex-Piet Hein)	F02	354	KM De Schelde, Vlissingen, Netherlands	28.4.1977	3.6.1978	14.4.1981 // 29.6.1998	stricken 2007

Technical data

Displacement standard, t	3000
Displacement full, t	3800
Length, m	121.8 pp 130.2 oa
Breadth, m	14.4
Draught, m	4.40 hull 6.00 propellers
No of shafts	2
Machinery	COGOG: 2 Rolls-Royce Olympus TM-3B gas turbines / 2 Rolls-Royce Tyne RM-1C gas turbines
Power, h. p.	51600 / 9800
Max speed, kts	30
Fuel, t	gas turbine oil
Endurance, nm(kts)	4700(16)
Armament	2 x 4 Harpoon SSM (8 RGM-84A/C), 1 x 8 NATO Sea Sparrow SAM (24 RIM-7), 1 x 1 - 76/62 OTO Melara Compact, 1 x 1 - 30/77 Goalkeeper, 2 x 1 - 20/70 Mk 10, 4 - 324 Mk 32 mod. 9 TT (Mk 46 mod. 5), 2 helicopters (AS-565 Panther)
Electronic equipment	Scout, ZW-06, LW-08, WM-25, STIR-18, Goalkeeper radars, SQS-505 sonar, Sphinx, Ramses ECM suites, 2x Mk 36 SRBOC decoy RL, SLQ-25A Nixie torpedo decoy, SEWACO II CCS
Complement	140

Standard scale images

Graphics

Project history

Former Dutch frigates of Kortenaer-class.

Modernizations

None.

Naval service

No significant events.
