TAZARKA patrol boats(1977)
Tazarka 1977
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| تزركا [Tazarka] | P205 | Vosper Thornycroft, Portchester, UK | 19.7.1976 | 27.10.1977 | stricken 2000 | ||
| منزل برغبة [Menzel Bourguiba] | P206 | Vosper Thornycroft, Portchester, UK | 19.7.1976 | 27.10.1977 | stricken 2000 |
Technical data
| Displacement standard, t | 100 |
|---|---|
| Displacement full, t | 125 |
| Length, m | 29.0 pp 31.3 oa |
| Breadth, m | 6.02 |
| Draught, m | 1.98 |
| No of shafts | 2 |
| Machinery | 2 MTU diesels |
| Power, h. p. | 4000 |
| Max speed, kts | 27 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 1500(14) |
| Armament | 2 x 1 - 20/70 Mk 4 |
| Electronic equipment | Decca 916 radar |
| Complement | 24 |
Graphics

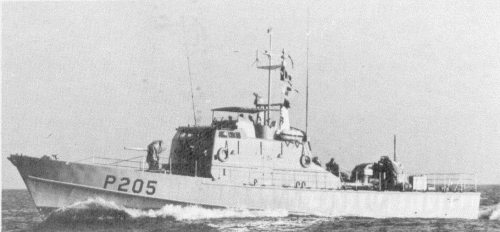

Tazarka 1977
Project history
Vosper-Thornycroft 103' design.
Modernizations
None.
Naval service
No significant events.
