CG1501 patrol launches (2010-2012)
CG1512 2011
Ships
| Names | Builders | Completed | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
CG1501-1512 |
CMN, Cherbourg, France: CG1501-1512 | 2010-2012: CG1501-1512 |
none |
none |
in service (2020): CG1501-1512 |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 12 |
| Length, m | 15.5 |
| Breadth, m | 3.00 |
| Draught, m | 0.80 |
| No of shafts | 2 waterjets |
| Machinery | 2 Caterpillar diesels |
| Power, h. p. | 1420 |
| Max speed, kts | 55 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | |
| Armament | 1 x 1 - 12.7/90 |
| Electronic equipment | radar |
| Complement | 4 |
Graphics

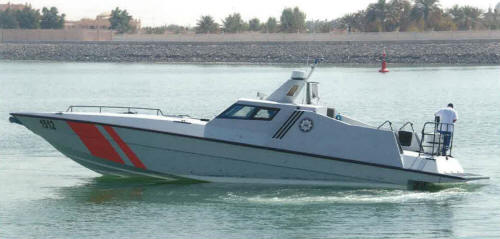

CG1512 2011
Project history
Coast Guard. Fast interceptors of DV15 design.
Modernizations
None.
Naval service
One launch from built to Coast Guard serves under Naval flag.
