SOOKE POST patrol boats (1973-1975)
Atlin Post 2001
Ships
| Names | Builders | Completed | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
Sooke Post Kitimat II Atlin Post Chilcoe Post Comox Post |
Philbrooks SY, Sidney: Sooke Post, Kitimat II, Atlin Post, Chilcoe Post, Comox Post |
1973: Sooke Post 1974: Kitimat II 1975: Atlin Post, Chilcoe Post, Comox Post |
None |
None |
2002: Comox Post 2003: Chilcoe Post 2016: Sooke Post, Kitimat II in service (2019): Atlin Post |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 70 |
| Length, m | 19.8 |
| Breadth, m | 5.20 |
| Draught, m | 1.50 |
| No of shafts | 2 |
| Machinery | 2 General Motors Detroit Diesel V-12 diesels |
| Power, h. p. | 1100 |
| Max speed, kts | 15 |
| Fuel, t | diesel oil 4 |
| Endurance, nm(kts) | 400(12) |
| Armament | none |
| Electronic equipment | Furuno FP-150D, Furuno FR-1011 radars |
| Complement | 4 |
Graphics

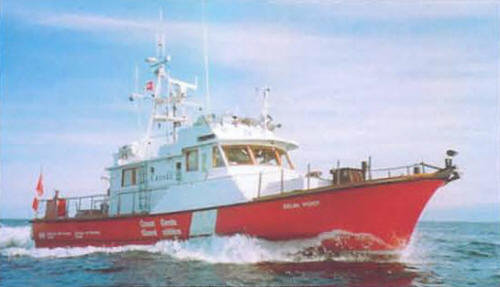

Atlin Post 2001
Project history
Patrol boats of Department of Fisheries and Oceans, in 1995 transferred to Coast Guard
Modernizations
None.
Naval service
No significant events.
