P211 2011

Ships

Names	Builders	Completed	Losses	Transfers	Discarding
P201 P202 P203 P204 مغرق [Mugharriq] P205 P206 P207 P208 P209 P210 مغرق [Mugharraq] P211 P212	Swede Ship Marine AB, Tjörn, Sweden: P201-203 ADSB, Massafah, Abu Dhabi: P204-212	2003-2004: P201-212	none	none	in service (2020): P201-212

Technical data

Displacement standard, t	30
Displacement full, t	43
Length, m	24.3
Breadth, m	5.10
Draught, m	1.10
No of shafts	2 waterjets
Machinery	2 MTU 12V2000 M90 diesels
Power, h. p.	2720
Max speed, kts	35
Fuel, t	diesel oil
Endurance, nm(kts)	500(15)
Armament	1 x 1 - 12.7/90
Military load	42 troops, 15 t cargo
Electronic equipment	radar
Complement	3

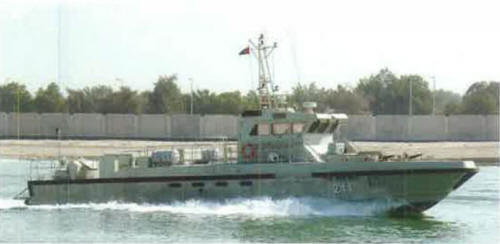

Graphics

Project history

Project Ghannatha, modified design of support boat of Swedish Artillery Service, ordered in 2001. Aluminium construction. Have folding bow ramp and small crane.

Modernizations

None.

Naval service

Some boats serve under Coast Guard flag.
