DOĞAN fast attack craft (missile) (1977-1988)

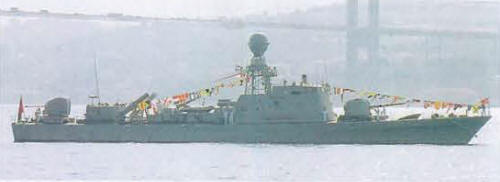

Doğan 2005

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Doğan P340   Lürssen, Vegesack, Germany 2.6.1975 16.6.1976 23.12.1977 in service (2019)
Martı P341   Taşkizak NSY, Istanbul 1.7.1975 28.7.1977 1.8.1978 in service (2019)
Tayfun P342   Taşkizak NSY, Istanbul 1.12.1975 19.7.1979 10.7.1980 in service (2019)
Volkan P343   Taşkizak NSY, Istanbul 1976 11.8.1980 12.5.1981 in service (2019)
Rüzgâr P344   Taşkizak NSY, Istanbul 30.7.1981 1983 24.5.1985 stricken 2018
Poyraz P345   Taşkizak NSY, Istanbul 1982 17.12.1984 28.8.1986 in service (2019)
Gurbet P346   Taşkizak NSY, Istanbul 1985 24.7.1987 24.7.1988 in service (2019)
Fırtına P347   Taşkizak NSY, Istanbul 1986 22.7.1988 14.10.1988 in service (2019)


100 - 1000 t displacement/ BRT tonnage vessels


Name No Yard No Builder Laid down Launched Comp Fate Doğan P340   Lürssen, Vegesack, Germany 2.6.1975 16.6.1976 23.12.1977 in service (2019) Martı P341   Taşkizak NSY, Istanbul 1.7.1975 28.7.1977 1.8.1978 in service (2019) Tayfun P342   Taşkizak NSY, Istanbul 1.12.1975 19.7.1979 10.7.1980 in service (2019) Volkan P343   Taşkizak NSY, Istanbul 1976 11.8.1980 12.5.1981 in service (2019) Rüzgâr P344   Taşkizak NSY, Istanbul 30.7.1981 1983 24.5.1985 stricken 2018 Poyraz P345   Taşkizak NSY, Istanbul 1982 17.12.1984 28.8.1986 in service (2019) Gurbet P346   Taşkizak NSY, Istanbul 1985 24.7.1987 24.7.1988 in service (2019) Fırtına P347   Taşkizak NSY, Istanbul 1986 22.7.1988 14.10.1988 in service (2019)

Technical data


Displacement standard, t

353
Displacement full, t

436
Length, m

54.5 pp 58.1 oa
Breadth, m

7.62
Draught, m

2.83
No of shafts

4
Machinery

4 MTU 16V956 TB91 diesels
Power, h. p.

18000
Max speed, kts

37
Fuel, t

diesel oil
Endurance, nm(kts)

3300(16)
Armament

2 x 4 Harpoon SSM (8 RGM-84A), 1 x 1 - 76/62 OTO-Melara Compact, 1 x 2 - 35/90 GDM-A, 2 x 1 - 7.6/90
Electronic equipment

340-345: Decca TM1226, WM-28-41 radars, Susie-1 ECM suite, 2x SRBOC Mk 36 decoy RL

346, 347: Decca TM1226, WM-28-41 radars, LIOD Mk 2 e/o system, Susie-1 ECM suite, 2x SRBOC Mk 36 decoy RL
Complement

38


Standard scale images


<i>Doğan </i>2000
Doğan 2000


Graphics


<i>Doğan </i>2005
Doğan 2005


Project history

Design based on German FPB 57 class, initially ordered in August 1973. Normally only four Harpoon SSM are carried. Similar to the Israeli Reshef class FAC(M)s.

Modernizations

2000-2002, Doğan, Martı, Tayfun, Volkan; 2004, Rüzgar, Poyraz: + LIOD Mk 2 e/o system, TACTICOS CCS

2004, Gurbet, Fırtına: + TACTICOS CCS

Naval service

No significant events.
