PRAB infantry landing craft (1944/1946-1947)





Prab 1970s

Ships


Name No Yard No Builder Laid down Launched Comm Fate
ยพฟิ [Prab] (ex-LCI(M)670, ex-LCI(L)670) 1, 1992- 741   George Lawley, Neponset, USA 3.1944 28.3.1944 4.1944 // 10.1946 stricken 2012
หฟะะฟาีะ [Sattakut] (ex-LCI(M)739, ex-LCI(G)739, ex-LCI(L)739) 2, 1992- 742   Commercial Iron Works, Portland, USA 1.1944 27.2.1944 3.1944 // 5.1947 stricken 2012


Technical data


Displacement standard, t

209

Displacement full, t

385

Length, m

46.6 wl 48.9 oa

Breadth, m

7.21

Draught, m

at landing 0.86 fore, 1.60 aft

No of shafts

2

Machinery

8 General Motors diesels

Power, h. p.

2320

Max speed, kts

15.5

Fuel, t

diesel oil 110

Endurance, nm(kts)

8000 (12)

Armament

2 x 1 - 20/70 Mk 10

Military load

209 marines of 75 t of cargo

Electronic equipmentpresumably SO or SCR-517A radar
Complement

29



Standard scale images

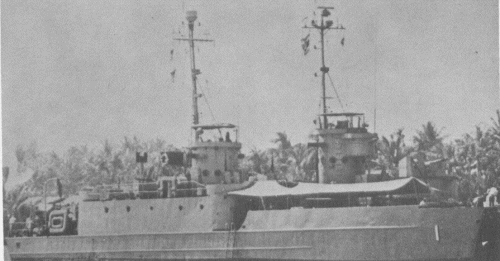

<i>Prab</i> 1960
Prab 1960


Graphics


<i>Prab </i>1970s
Prab 1970s

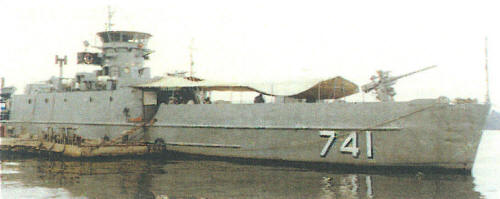

<i>Prab </i>1998
Prab 1998


Project history

Former US LCI(L) class landing craft infantry, large. They were configured as mortar landing support craft but converted to standard landing craft by Thai Navy before commission.

Modernizations

1992, Prab: - old radar; + 1 x 1 - 76/50 Mk 22, Raytheon 1500B Pathfinder radar

1995, Satakut: - old radar; + 1 x 1 - 40/60 Mk 3, Raytheon 1500B Pathfinder radar

Naval service

Prab was used as pontoon since 1980 but later reinstated as landing ship after refit.
