No3320 air-cushion personnel landing craft (Type 726) (2011-2018)

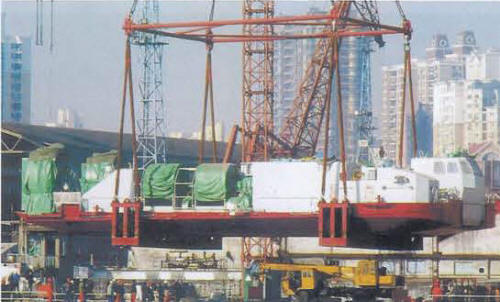

No3320 2008

Ships


Name No Yard No Builder Laid down Launched Comp Fate
  3320   Jiangnan SY   2008 2011 in service (2019)
  3321   Jiangnan SY     2013 in service (2019)
  3322   Jiangnan SY     2013 in service (2019)
  3330   Jiangnan SY     2016 in service (2019)
  3331   Jiangnan SY     2016 in service (2019)
  3332   Jiangnan SY     2016 in service (2019)
  3236   Jiangnan SY     2018 in service (2019)
  3237   Jiangnan SY     2018 in service (2019)
  3238   Jiangnan SY     2018 in service (2019)
  3239   Jiangnan SY     2018 in service (2019)


100 - 1000 t displacement/ BRT tonnage vessels


Name No Yard No Builder Laid down Launched Comp Fate   3320   Jiangnan SY   2008 2011 in service (2019)   3321   Jiangnan SY     2013 in service (2019)   3322   Jiangnan SY     2013 in service (2019)   3330   Jiangnan SY     2016 in service (2019)   3331   Jiangnan SY     2016 in service (2019)   3332   Jiangnan SY     2016 in service (2019)   3236   Jiangnan SY     2018 in service (2019)   3237   Jiangnan SY     2018 in service (2019)   3238   Jiangnan SY     2018 in service (2019)   3239   Jiangnan SY     2018 in service (2019)

Technical data


Displacement standard, t

120

Displacement normal, t

180

Length, m

28.8

Breadth, m

7.20

Draught, m

-

No of shafts

2 air propellers / 2 air propellers for lift

Machinery

4 Zaria-Mashproekt UGT6000 gas turbines

Power, h. p.

10000

Max speed, kts

40

Fuel, t

gas turbine oil

Endurance, nm(kts)

200(35)

Armament

1 x 2- 14.5/93

Military load

80 troops or 2 IFVs or 1 tank

Electronic equipment

radar

Complement

6



Standard scale images


<i>No3320 </i>2015
No3320 2015


Graphics


<i>No3320 </i>2008
No3320 2008


Project history

Chinese version of USN LCAC conception, intended for service on board of Type 071 LPDs.

Modernizations

None.

Naval service

No significant events.
