FIGHTING SHIPS OF THE WORLD
SIAM / THAILAND
AMPHIBIOUS SHIPS AND CRAFT
MAN NOK utility landing craft (2001)
Man Nai 2002
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comm | Fate |
|---|---|---|---|---|---|---|---|
| มันนอก [Man Nok] | 781 | Silkline, Pranburi | 1.5.2001 | 6.12.2001 | in service (2019) | ||
| มันกลาง [Man Klang] | 782 | Silkline, Pranburi | 1.5.2001 | 14.11.2001 | in service (2019) | ||
| มันใน [Man Nai] | 783 | Silkline, Pranburi | 1.5.2001 | 6.12.2001 | in service (2019) |
Technical data
| Displacement standard, t | 170 |
|---|---|
| Displacement full, t | 510 |
| Length, m | 52.4 |
| Breadth, m | 11.2 |
| Draught, m | 1.80 |
| No of shafts | 2 |
| Machinery | 2 Caterpillar 3412DITA diesels |
| Power, h. p. | 1440 |
| Max speed, kts | 12 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 1500(10) |
| Armament | 2 x 1 - 20/70 Mk 10 |
| Military load | 250 t cargo |
| Electronic equipment | Pathfinder radar |
| Complement | 33 |
Graphics

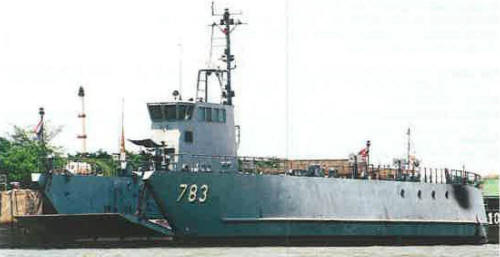

Man Nai 2002
Project history
Ordered in 1997. Bow and stern ramps. Modernizd version of Thong Kaeo class.
Modernizations
None.
Naval service
No significant events.
