T11 patrol boats (1966-1970)





T14 1980

Ships


Name No Yard No Builder Laid down Launched Comm Fate
ต.11 [Tor 11] 11   Peterson Builders, Sturgeon Bay, USA   22.5.1965 2.1966 deleted 2013
ต.12 [Tor 12] 12   Peterson Builders, Sturgeon Bay, USA   18.12.1965 1967 stricken 2017-18
ต.13 [Tor 13] 13   Peterson Builders, Sturgeon Bay, USA   13.4.1967 8.1967 stricken 2011
ต.14 [Tor 14] 14   Peterson Builders, Sturgeon Bay, USA   3.6.1969 8.1969 stricken 2013
ต.15 [Tor 15] 15   Peterson Builders, Sturgeon Bay, USA   24.6.1969 8.1969 stricken 2017-18
ต.16 [Tor 16] 16   Peterson Builders, Sturgeon Bay, USA   24.4.1969 2.1970 stricken 2017-18
ต.17 [Tor 17] 17   Peterson Builders, Sturgeon Bay, USA   3.6.1969 2.1970 stricken 2017-18
ต.18 [Tor 18] 18   Peterson Builders, Sturgeon Bay, USA   24.6.1969 2.1970 stricken 2017-18
ต.19 [Tor 19] 19   Peterson Builders, Sturgeon Bay, USA   4.5.1970 12.1970 stricken 2017-18
ต.110 [Tor 110] 110   Peterson Builders, Sturgeon Bay, USA   22.6.1970 10.1970 stricken 2013


Technical data


Displacement standard, t

130

Displacement full, t

144

Length, m

30.8

Breadth, m

6.45

Draught, m

2.30

No of shafts2
Machinery

8 General Motors 6-71 diesels

Power, h. p.2040
Max speed, kts

17

Fuel, tdiesel oil
Endurance, nm(kts)1000(12)
Armament

1 x 1 - 40/60 Mk 3, 1 x 2 - 20/70 Mk 24, 2 x 1 - 12.7/90, 1 x 1 - 81/12 M29 mortar

Electronic equipment

T11, 12: Decca 303 radar

others: Decca 202 radar

Complement

15



Standard scale images


<i>T11 </i>1975
T11 1975


Graphics

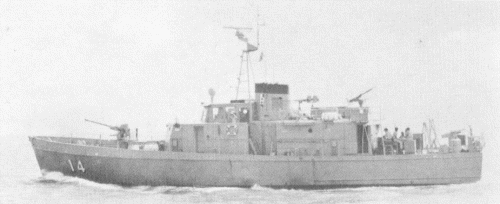

<i>T14 </i>1980
T14 1980

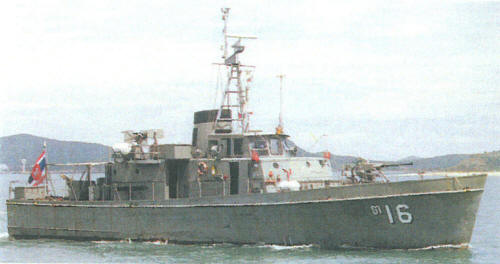

<i>T16 </i>1999
T16 1999


Project history

US PGM71 type.

Modernizations

None.

Naval service

No significant events.
