TAIPEI patrol ships (2000-2005)

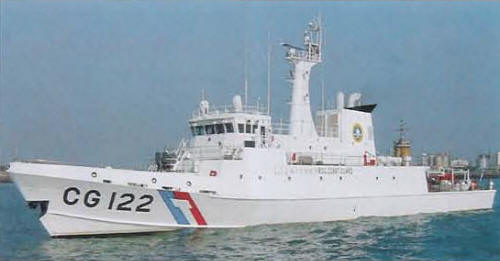

Nantou 2008

Ships


Name No Yard No Builder Laid down Launched Comm Fate
台北 [Taipei] CG116   Chung Hsin SBC, Kaohsiung   11.1999 20.3.2000 in service (2019)
南投 [Nantou] CG122   Chung Hsin SBC, Kaohsiung   2005 29.4.2005 in service (2019)


Technical data


Displacement standard, t500
Displacement full, t

680

Length, m

61.5

Breadth, m

9.50

Draught, m

2.50

No of shafts

2

Machinery

2 MTU 20V1163 TB93 diesels

Power, h. p.

20130

Max speed, kts

31

Fuel, t

diesel oil

Endurance, nm(kts)4150(15)
Armament

1 x 1 - 20/68 T75, 3 x 1 - 12.7/90

Electronic equipment

2x Furuno radars

Complement

40



Standard scale images


<i>Taipei </i>2010
Taipei 2010


Graphics


<i>Nantou </i>2008
Nantou 2008


Project history

Delivered five years apart. Differ from naval sisters in having only light armament and in carrying two RIB inspection/rescue aft in davits. Steel and aluminum construction.

Modernizations

None.

Naval service

No significant events.
