HQ-13 small frigates (1970-1973/1983-1984)

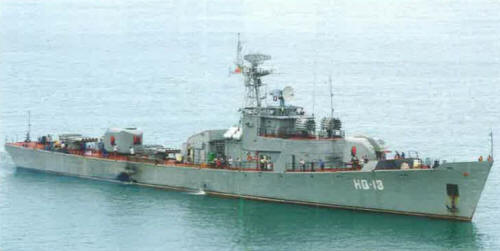

HQ-13 2012
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| HQ-13 (ex-СКР-141 [SKR-141]) | HQ-13 | 47 | Khabarovsk SYd, USSR | 30.4.1970 | 7.8.1971 | 31.12.1971 // 12.1983 | in service (2019) |
| HQ-15 (ex-СКР-130 [SKR-130]) | HQ-15 | 44 | Khabarovsk SYd, USSR | 11.9.1969 | 5.9.1970 | 30.9.1970 // 12.1983 | in service (2019) |
| HQ-17 (ex-СКР-135 [SKR-135]) | HQ-17 | 49 | Khabarovsk SYd, USSR | 15.8.1971 | 12.8.1972 | 26.12.1972 // 12.1984 | in service (2019) |
Technical data
| Displacement standard, t | 970 |
|---|---|
| Displacement full, t | 1140 |
| Length, m | 82.3 |
| Breadth, m | 9.20 |
| Draught, m | 2.89 mean 5.92 max |
| No of shafts | 3 |
| Machinery | CODAG, 2 M-2B gas turbines + 1 61B diesel |
| Power, h. p. | 30000+6000=36000 |
| Max speed, kts | 32 |
| Fuel, t | diesel / gas turbine oil |
| Endurance, nm(kts) | 2000(14) |
| Armament | 2 x 2 - 76/59 AK-726, 2 x 5 - 400 TT, 2 x 12 RBU-6000 Smerch-2 ASWRL, 1 DCR, 22 mines |
| Electronic equipment | MR-302 Rubka, Fut-B, Don radars, MG-312 Titan, MG-311 Vychegda sonars, Bizan'-4B ECM suite |
| Complement | 106 |
Standard scale images
HQ-13 1990
Graphics
HQ-13 2012
Project history
Former Soviet project 159A small frigates.
Modernizations
None.
Naval service
No significant events.
