MAWANI 31 patrol boats (2009)
2012
Ships
| Names | Builders | Commissioned | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
31 مواني [Mawani 31] 32 مواني [Mawani 32] |
Düzgit SY, Turkey: Mawani 31, 32 |
2009: Mawani 31, 32 |
none |
none |
in service (2020): Mawani 31, 32 |
Technical data
| Displacement standard, t | 40 |
|---|---|
| Displacement full, t | |
| Length, m | 17.1 pp 19.6 oa |
| Breadth, m | 5.30 |
| Draught, m | 1.10 |
| No of shafts | 2 |
| Machinery | 2 MTU diesels |
| Power, h. p. | 2680 |
| Max speed, kts | 33 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | |
| Armament | small arms |
| Electronic equipment | Furuno radar |
| Complement | 3 + 8 passengers |

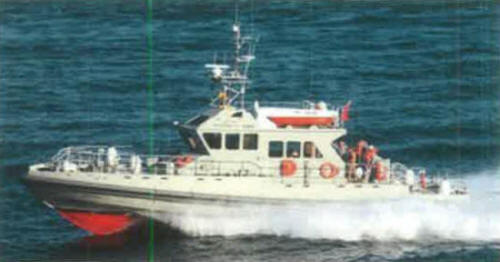

Graphics
2012
Project history
Customs.
Modernizations
None.
Naval service
No significant events.
