BÄVERN submarines (1921)





Uttern 1921 Many thanks to Wolfgang Stöhr for additional information on this page.

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Bävern B, Bä 129 Kockums, Malmö 1918 5.3.1921 6.1921 stricken 10.1944
Illern I, In 291 Örlogsvarvet Karlskrona 1918 30.6.1921 1921 collision 12.8.1943
Uttern U, Ut 292 Örlogsvarvet Karlskrona 1918 25.7.1921 1921 stricken 10.1944


Technical data


Displacement standard, t429
Displacement normal, t

472 / 650

Length, m

57.0

Breadth, m

5.80

Draught, m

3.00

No of shafts

2

Machinery

2 6cyl diesels / 2 electric motors

Power, h. p.

2100 / 520

Max speed, kts

15.2 / 8.2

Fuel, t

diesel oil

Endurance, nm(kts)3000(15) / 54(6)
Armament

1 x 1 - 57/50 K/55 M89B, 4 - 450 TT (bow, 8)

Complement

28

Diving depth operational, m30?


Standard scale images


<i>Illern</i> 1940
Illern 1940


Graphics

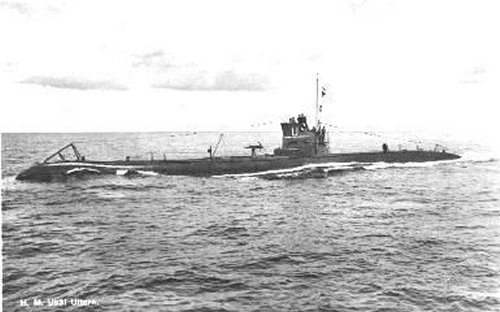

<i>Uttern</i> 1921 <i>Many thanks to Wolfgang Stöhr for additional information on this page.</i>
Uttern 1921 Many thanks to Wolfgang Stöhr for additional information on this page.


Project history

Advanced Hajen class in which for the account of slightly increased dimensions fuel stowage and surface endurance were increased. They become outdated to the beginning of WW II.

Modernizations

none.

Naval service

Illern was lost 12.8.1943 as a result of collision with m/s Birkaland in Kalmar straight, salvaged 1.9.1943 but never repaired and sold for BU in 1944.

Many thanks to Wolfgang Stöhr for additional information on this page.
