NAVYPEDIA

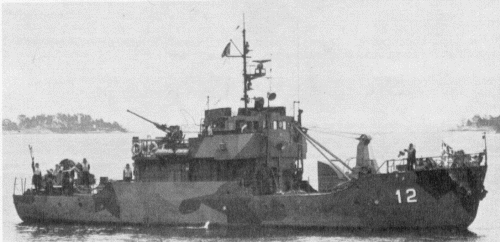

Mul12 1975

Ships

Name	No	Yard No	Builder	Laid down	Launched	Comp	Fate
Mul12, 1986- Arkosund	MUL12, 1986- Ark				1952	1953	stricken 2006
Mul13, 1986- Kalmarsund	MUL13, 1986- Ksd				1952	1953	stricken 2003
Mul14, 1986- Alnösund	MUL14, 1986- Aln				1953	1954	stricken 1996
Mul15, 1986- Grundsund	MUL15, 1986- Gru				1953	1954	stricken 2011
Mul16, 1986- Fårösund	MUL16, 1986- Får				1956	1957	stricken 1992
Mul17, 1986- Skramsösund	MUL17, 1986- Smd				1956	1957	stricken 2002
Mul18, 1986- Öresund, 1992- Fårösund	MUL18, 1986- Örd, 1992- Får				1956	1957	stricken 2012
Mul19, 1986- Bårösund	MUL19, 1986- Bår	338	Oskarshamn SYd		1956	1957	stricken 2003

Technical data

Displacement standard, t	200
Displacement full, t	245
Length, m	29.0 pp 31.2 oa
Breadth, m	7.62
Draught, m	3.10
No of shafts	2
Machinery	2 Nohab/Scania diesel-generators, 2 electric motors
Power, h. p.	460
Max speed, kts	10.5
Fuel, t	diesel oil
Endurance, nm(kts)
Armament	1 x 1 - 40/70 M48, 26t of mines
Electronic equipment	none
Complement	24

Standard scale images

Graphics

Project history

Small minelayers, belonged to Coastal Artillery.

Modernizations

1980s, all: - 1 x 1 - 40/70; + 2 x 1 - 12.7/90, Decca RM1226C radar

Naval service

no significant events.
