BERSERK small monitors (1873-1875)

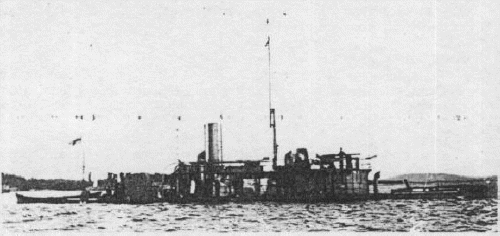

Ulf 1914 Many thanks to Wolfgang Stöhr for additional information on this page.

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Ulf   196 Motala, Norrköping   1873 1873 stricken 1919
Björn   214 Motala, Norrköping   1874 1874 stricken 1922
Berserk   213 Motala, Norrköping   1874 1874 stricken 1919
Sölve   238 Motala, Norrköping   1875 5.1875 stricken 1919
Folke   239 Motala, Norrköping   1875 1875 stricken 1919


Technical data


Displacement normal, t453
Displacement full, t

460

Length, m

32.3 pp 39.8 oa

Breadth, m

6.80 wl 8.02 max

Draught, m

2.52 normal 2.70 max

No of shafts

2

Machinery

2 HC, boilers

Power, h. p.

155

Max speed, kts

8

Fuel, t

coal 19

Endurance, nm(kts)
Armour, mmiron; belt: 76-64, turret: 418-356
Armament

1 x 1 - 240/18 K/21 M69

Complement

42



Standard scale images


similar <i>Sköld </i>1871
similar Sköld 1871


Graphics


<i>Ulf</i> 1914 <i>Many thanks to Wolfgang Stöhr for additional information on this page.</i>
Ulf 1914 Many thanks to Wolfgang Stöhr for additional information on this page.


Project history

Monitors for the outer defence of the archipelagos, differed from Gerda class only in details. Ulf had her single gun on the aft deck to support possible retreat of squadron.

Modernizations

1887, all: + 2 x 1 - 25/32 K/35 M77

1896-1909, all: CT with 254mm sides was added; - 1 x 1 - 240/18, 2 x 1 - 25/32; + 1 x 1 - 120/44 K/45 M94, 2 x 1 - 57/50 K/55 M89

Naval service

no significant events.

Many thanks to Wolfgang Stöhr for additional information on this page.
