821 2006

Ships

Names	Builders	Commissioned	Losses	Transfers	Discarding
801 - 947	Dockstavarvet, Docksta, Gotlands varvet: 801-947	1989: 801, 802 1991: 803-807 1992: 808-814 1993-1994: 815-877 1994-1997: 878-907 1998-2003: 908-947	None	none	2004: 801, 802 2012-2015: 803-805, 807, 809, 812-814, 843, 867, 894, 915 2016-2017: 808 in service (2019): 806, 808, 810, 811, 815-842, 844-866, 868-893, 895-914, 916-947

Technical data

Displacement standard, t	13
Displacement full, t	20
Length, m	13.0 pp 15.9 oa
Breadth, m	3.80
Draught, m	1.00
No of shafts	2 waterjets
Machinery	2 Volvo-Scania DSI14V8 diesels
Power, h. p.	1250
Max speed, kts	40
Fuel, t	diesel oil
Endurance, nm(kts)	250(30)
Armament	1 x 2 - 12.7/90, 1 x 1 - 12.7/90
Military load	21 troops or 2.8 t cargo or 6 M-9 mines
Electronic equipment	Decca 110 radar
Complement	3

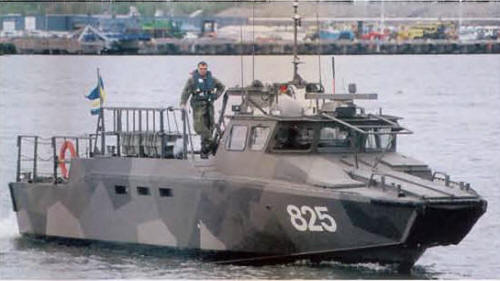

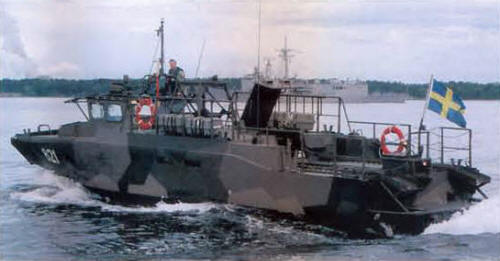

Graphics

Project history

Coastal artillery. Aluminium hull, landing ramp fwd.

Modernizations

none.

Naval service

no significant events.
