SÖKAREN inshore minesweeper (2001)
Sökaren 2004
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| Sökaren | MRF01 | Danyard, Aalborg, Denmark | 12.2001 | to Denmark 1.2016 |
Technical data
| Displacement standard, t | 102 |
|---|---|
| Displacement full, t | 125 |
| Length, m | 23.9 pp 26.5 oa |
| Breadth, m | 7.00 |
| Draught, m | 2.20 |
| No of shafts | 2 Schottel azimutal waterjets |
| Machinery | 2 Saab-Scania DSI-14.74M diesels |
| Power, h. p. | 960 |
| Max speed, kts | 12 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 420(10) |
| Armament | Double Eagle USV or minesweeping gear |
| Electronic equipment | nav. radar, STS 2054 sonar, remote control equipment |
| Complement | 3 - 4 // 0 |
Graphics

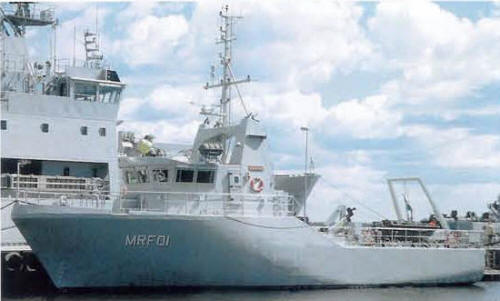

Sökaren 2004
Project history
Ordered for comparative trials with the Swedish SAM-II class. GRP construction. Can be operated by crew as inshore minesweeper or by remote control.
Modernizations
None.
Naval service
No significant events.
