SÖKAREN minesweepers (1918)





Sveparen 1940

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Sökaren 16, 47   Motala, Norrköping   16.8.1917 4.1918 tug 1930, wrecked 3.10.1953
Sveparen 17, 48, 253   Motala, Norrköping   19.12.1917 9.1918 tender 1930, stricken 1.1964
Sprängaren 18, 49, 254   Motala, Norrköping   12.6.1918 11.1918 tender 1930, stricken 1.1962


Technical data


Displacement standard, t

227

Displacement full, t266
Length, m

25.5 wl 27.8 oa

Breadth, m

6.80

Draught, m

3.00

No of shafts

1

Machinery

1 Motala VTE, 1 Howden boiler

Power, h. p.465
Max speed, kts

10

Fuel, t

coal

Endurance, nm(kts)
Armament

1 x 1 - 57/18 K/21 M16 AA, mines, mechanical minesweeping gear

Complement

17



Graphics

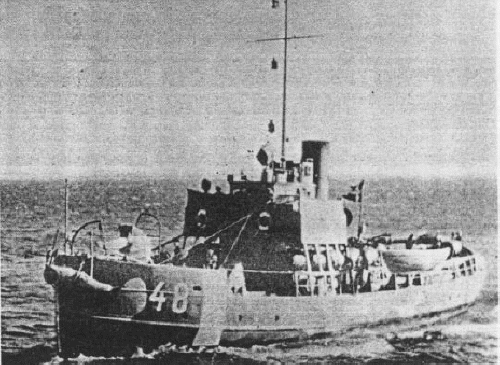

<i>Sveparen</i> 1940
Sveparen 1940


Project history

They were built on the basis of the tug design. Ships were used during service not only as minesweepers, but also as tenders and tugs.

Modernizations

1939-40, all: - 1 x 1 - 57/18; + 1 x 1 - 25/55 K/58 M32, 1 x 1 - 8.80.

Naval service

no significant events.
