SAM01 remote-controlled MCM craft (1983-1993)

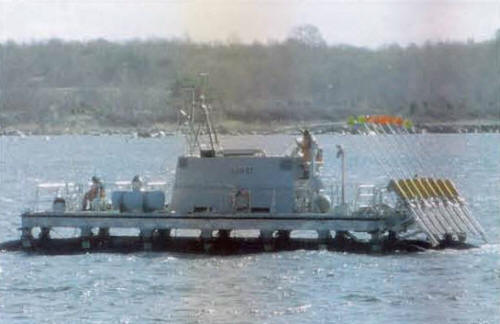

SAM07 2003
Ships
| Names | Builders | Commissioned | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
SAM01 - 07 |
Karlskronavarvet, Karlskrona: SAM01-05 Kockums, Malmö: SAM06, 07 |
1983: SAM01-05 1993: SAM06, 07 |
no |
USA, 5.1991: SAM03, 05 |
in service (2019): SAM01, 02, 04, 06, 07 |
Technical data
| Displacement standard, t | 15 |
|---|---|
| Displacement full, t | 20 |
| Length, m | 18.0 |
| Breadth, m | 6.00 |
| Draught, m | 1.60 |
| No of shafts | 1 |
| Machinery | 1 Volvo-Penta TAMD 70D diesel |
| Power, h. p. | 210 |
| Max speed, kts | 8 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 330(7) |
| Armament | magnetic, acoustic minesweeping gear |
| Electronic equipment | none |
| Complement | 3 // 0 |
Graphics
SAM07 2003
Project history
Catamarans automatically lay eight swept-channel danbuoy markers. Can be controlled by Landsort and Styrsö class ships.
Modernizations
none.
Naval service
no significant events.
