EDDA gunboat (1885)





Edda Many thanks to Wolfgang Stöhr for additional information on this page.

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Edda   260 Örlogsvarvet Karlskrona   30.11.1882 4.1885 minelayer 1907, barrack ship 10.1923


Technical data


Displacement normal, t613
Displacement full, t

640

Length, m

55.8

Breadth, m

8.26

Draught, m

3.10

No of shafts

2

Machinery

2 VC, boilers

Power, h. p.

960

Max speed, kts

13.5

Fuel, t

coal 80

Endurance, nm(kts)
Armament

1 x 1 - 274/23 K/26 M1881, 1 x 1 - 152/25 K/28 M1883, 2 x 1 - 25/32 K/35 M1884

Complement

76

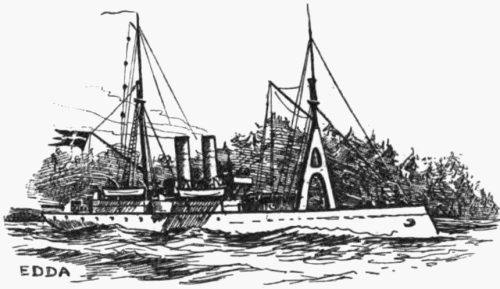

Graphics


<i>Edda</i> <i>Many thanks to Wolfgang Stöhr for additional information on this page.</i>
Edda Many thanks to Wolfgang Stöhr for additional information on this page.


Project history

Coast defence gunboats, improvement of Blenda class.

Modernizations

1907: - 1 x 1 - 274/23, 1 x 1 - 152/25, 2 x 1 - 25/32; + 4 x 1 - 57/50 K/55 M89B, mines

Naval service

no significant events.
