LANDSORT inshore minesweepers/minehunters (1984-1992)

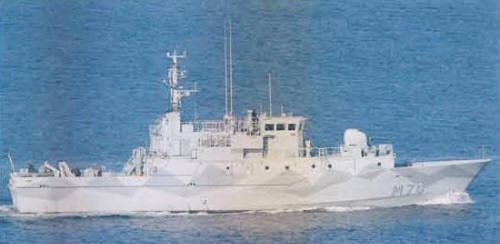

Ven 2007 Many thanks to Wolfgang Stöhr for additional information on this page.
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| Landsort | M71 | 406 | Karlskronavarvet, Karlskrona | 5.10.1981 | 22.11.1982 | 19.3.1984 | stricken 2010 |
| Arholma | M72 | 407 | Karlskronavarvet, Karlskrona | 13.2.1982 | 10.10.1984 | 23.11.1984 | stricken 2010 |
| Koster | M73 | 417 | Karlskronavarvet, Karlskrona | 1.9.1984 | 16.1.1986 | 30.5.1986 | in service (2019) |
| Kullen | M74 | 418 | Karlskronavarvet, Karlskrona | 1.1.1985 | 15.8.1986 | 3.7.1987 | in service (2019) |
| Vinga | M75 | 419 | Karlskronavarvet, Karlskrona | 27.4.1986 | 14.8.1987 | 22.11.1987 | in service (2019) |
| Ven | M76 | 420 | Karlskronavarvet, Karlskrona | 12.1.1987 | 18.8.1988 | 12.12.1988 | in service (2019) |
| Ulvön | M77 | 430 | Karlskronavarvet, Karlskrona | 2.1.1988 | 4.3.1992 | 9.10.1992 | in service (2019) |
Technical data
| Displacement standard, t | 310 |
|---|---|
| Displacement full, t | 360 |
| Length, m | 43.2 pp 47.5 oa |
| Breadth, m | 9.60 |
| Draught, m | 2.30 |
| No of shafts | 2 Voith-Schneider vertical cycloidal propellers |
| Machinery | 4 Saab-Scania DSI-14 diesels |
| Power, h. p. | 1440 |
| Max speed, kts | 15 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 2000(12) |
| Armament | 1 x 1 RBS-70 SAM (8 RBS-70), 1 x 1 - 40/70 SAK40/48 (315), 2 x 1 - 7.6/90, 4 x 9 ELMA ASW600 ASWRL, mines, 2x Sea Owl mine-disposal USV, control equipment for 3x SAM minesweeping devices, mechanical, magnetic, 2x acoustic minesweeping gear, decompression chamber |
| Electronic equipment | Scanter 009 radar, TVT-100 e/o system, TSM 2022 sonar, Matilde ECM suite, 2x Philax decoy RL, 9MJ400 CCS |
| Complement | 26 |
Standard scale images
Landsort 1990
Koster 2010
Graphics
Ven 2007 Many thanks to Wolfgang Stöhr for additional information on this page.
Project history
Proposed eighth unit was cancelled. GRP hulls.
Modernizations
2009, Koster, Vinga, Ulvön; 2010, Kullen, Ven: superstructures and masts were rebuilt, complement became 29; - 1 x 1 - 40/70 SAK40/48, 2x Sea Owl USV, Scanter 009 radar, TVT-100 e/o system, TSM 2022 sonar, 9MJ400 CCS; + 1 x 1 - 40/70 Sea Trinity, Double Eagle Mk 3 USV, Sea Fox USV, Bridgemaster, 9LV200 Mk 2 radars, ARTE-726 e/o system, HMS-12M sonar, IMCMS-S CCS
Naval service
No significant events.
