RAGNAR destroyers (1909-1910)

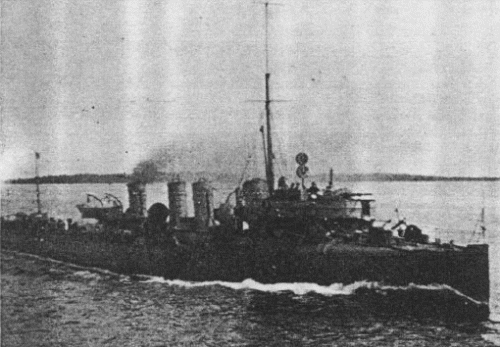

Sigurd 1914 Many thanks to Wolfgang Stöhr for additional information on this page.

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Vidar 4 - 23 95 Kockums, Malmö 1908 9.6.1909 4.1910 stricken 6.1947
Ragnar 5 - 22 93 Kockums, Malmö 1907 30.5.1908 1.1909 stricken 6.1947
Sigurd 6 - 21 395 Lindholmen, Göteborg 1907 19.9.1908 4.1909 stricken 6.1947


Technical data


Displacement standard, t

430

Displacement full, t

460

Length, m

65.8 wl 66.1 oa

Breadth, m

6.30

Draught, m

2.50 mean 2.70 max

No of shafts

2

Machinery

2 4-cyl. VTE, 4 Yarrow boilers

Power, h. p.

7200

Max speed, kts

30

Fuel, t

coal 84

Endurance, nm(kts)1400(12)
Armament

2 x 1 - 75/49 K/50 M05, 4 x 1 - 57/50 K/55 M89B, 2 x 1 - 450 TT

Complement

54



Standard scale images


<i>nearly sister-ship Wale</i> 1916
nearly sister-ship Wale 1916
<i>Vidar</i> 1939
Vidar 1939


Graphics


<i>Sigurd</i> 1914 <i>Many thanks to Wolfgang Stöhr for additional information on this page.</i>
Sigurd 1914 Many thanks to Wolfgang Stöhr for additional information on this page.


Project history

Design of Wale class destroyers represented almost exact copy of destroyer Magne, built in 1905 by Thornycroft. More strong armament consisted of two 75mm and four 57mm (instead of six 57mm) guns became unique difference from a prototype.

Modernizations

1916, all: - 4 x 1 - 57/50, 2 x 1 - 450 TT; + 2 x 1 - 75/49 K/50 M05, 2 x 2 - 450 TT.

1940, all: - 1 x 1 - 75/49; + 2 x 1 - 25/55 K/58 M32, 1 x 2 - 8.76, 2 DCR

Naval service

No significant events.

Many thanks to Wolfgang Stöhr for additional information on this page.
