HUGIN destroyers (1911-1913)

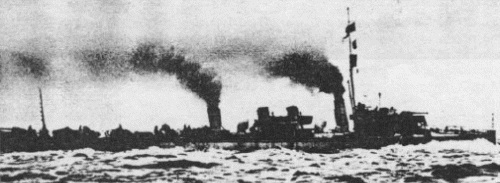

Hugin 1911 Many thanks to Wolfgang Stöhr for additional information on this page.

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Hugin 7 - 24   Götaverken, Göteborg 1909 10.12.1910 6.1911 stricken 6.1947
Munin 8 99 Kockums, Malmö 1910 5.12.1911 1.1913 stricken 10.1940


Technical data


Displacement standard, t

446

Displacement full, t

~500

Length, m

65.8 wl 66.3 oa

Breadth, m

6.50

Draught, m

2.10 mean 3.50 max

No of shafts

2

Machinery

2 AEG-Curtis steam turbines, 4 Yarrow boilers

Power, h. p.

10000

Max speed, kts

33

Fuel, t

coal 84

Endurance, nm(kts)1500(16)
Armament

4 x 1 - 75/49 K/50 M05, 2 x 1 - 450 TT

Complement

72



Standard scale images


<i>nearly sister-ship Wale</i> 1916
nearly sister-ship Wale 1916
<i>nearly sister-ship Vidar</i> 1939
nearly sister-ship Vidar 1939


Graphics


<i>Hugin</i> 1911 <i>Many thanks to Wolfgang Stöhr for additional information on this page.</i>
Hugin 1911 Many thanks to Wolfgang Stöhr for additional information on this page.


Project history

Design of Wale class destroyers represented almost exact copy of destroyer Magne, built in 1905 by Thornycroft. More strong armament consisted of two 75mm and four 57mm (instead of six 57mm) guns became unique difference from a prototype. In total six ships were built from which last pair has been equipped by steam turbines, and number of 75mm guns, for account of deleting 57mm, has increased to four. On trials Munin achieved 33.16kts at 10 330hp.

Modernizations

1916, both: - 2 x 1 - 450 TT; + 2 x 2 - 450 TT.

1940, both: - 1 x 1 - 75/49; + 2 x 1 - 25/55 K/58 M32, 1 x 2 - 8.76, 2 DCR

Naval service

No significant events.

Many thanks to Wolfgang Stöhr for additional information on this page.
