No642 patrol ship (1985)

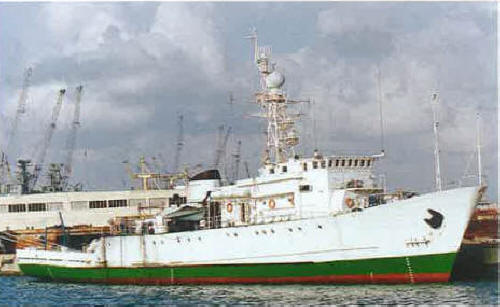

642 1996

Ships


Name No Yard No Builder Laid down Launched Comp Fate
  642   Sredne-Nevskiy SSZ, Pontonnyy, USSR     1985 survey vessel ~1993


Technical data


Displacement standard, t

750

Displacement full, t

804

Length, m

61.0

Breadth, m

10.2

Draught, m

2.30

No of shafts

2

Machinery

2 M-503B-37 diesels

Power, h. p.

5000

Max speed, kts

16

Fuel, t

diesel oil

Endurance, nm(kts)

3000(12)

Armament

2 x 1 Igla-1 SAM (20 9M313), 2 x 2 - 30/71 AK-230M, 2 x 2 - 25/82 2M-3M

Electronic equipment

MR-212 Vaygach, MR-104 Rys' radars

Complement

69



Standard scale images


<i> 642 </i> 1990
642 1990


Graphics


<i>642 </i>1996
642 1996


Project history

Soviet special export project 266MES, laid down as ocean minesweeper but completed as training / patrol ship for Syria without minesweeping and ASW equipment.

Modernizations

None.

Naval service

No significant events.
