L820 landing craft (1991-1995)
L821 2006
Ships
| Names | Builders | Commissioned | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
L820, 821 |
China: L820, 821 |
1991: L820 1995: L821 |
none |
None | in service (2019): L820, 821 |
Technical data
| Displacement standard, t | 58 |
|---|---|
| Displacement full, t | 85 |
| Length, m | 24.8 |
| Breadth, m | 5.20 |
| Draught, m | 1.30 |
| No of shafts | 2 |
| Machinery | 2 12V150C diesels |
| Power, h. p. | 600 |
| Max speed, kts | 11.5 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 450(11.5) |
| Armament | 2 x 2 - 14.5/93 |
| Military load | 50 t of cargo or 150 troops |
| Electronic equipment | Fuji radar |
| Complement | 12 |
Standard scale images

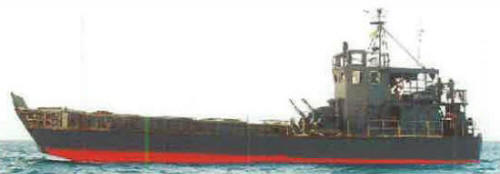

L820 2000
Graphics
L821 2006
Project history
Chinese LCMs of type 068.
Modernizations
None.
Naval service
No significant events.
