MV70 Crestitalia patrol boats (1981-1982)
1980
Ships
| Names | Builders | Commissioned | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
6 boats |
Crestitalia, Ameglia (La Spezia), Italy: 6 boats |
1981-1982: 6 boats |
none |
none |
in service (2019): 6 boats |
Technical data
| Displacement standard, t | 33 |
|---|---|
| Displacement full, t | 42 |
| Length, m | 21.0 |
| Breadth, m | 5.20 |
| Draught, m | 0.90 |
| No of shafts | 2 |
| Machinery | 2 MTU 12V331 TC92 diesels |
| Power, h. p. | 2800 |
| Max speed, kts | 35 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 500(31) |
| Armament | 1 x 2 - 30/75 A32, 1 x 1 - 20/70 A41A, 2 x 1 - 7.6/90 |
| Electronic equipment | radar |
| Complement | 10 |

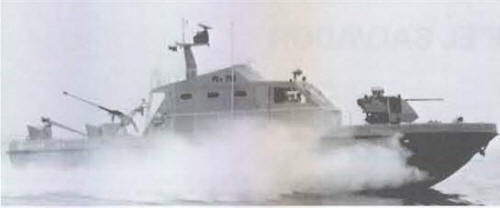

Graphics
1980
Project history
MV70 design of Crestitalia.
Modernizations
None.
Naval service
No significant events.
