LILIAN NGOYI patrol ships (2005)

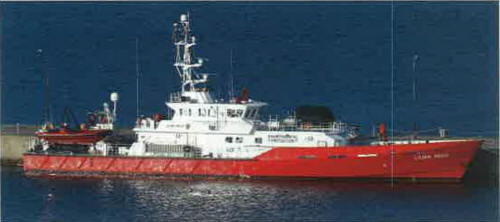

Lilian Ngoyi 2012
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comm | Fate |
|---|---|---|---|---|---|---|---|
| Lilian Ngoyi | Farocean Marine, Durban | 2/2005 | in service (2019) | ||||
| Ruth First | Farocean Marine, Durban | 3/2005 | in service (2019) | ||||
| Victoria Mxenge | Farocean Marine, Durban | 5/2005 | in service (2019) |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 353 |
| Length, m | 46.8 |
| Breadth, m | 8.11 |
| Draught, m | 2.90 |
| No of shafts | 2 |
| Machinery | 2 MTU 16V4000 M90 diesels |
| Power, h. p. | 7400 |
| Max speed, kts | 24 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 3500(15) |
| Armament | small arms |
| Electronic equipment | 2x Furuno FR-2127 radars |
| Complement | 16 + 4 passengers |
Standard scale images
Lilian Ngoyi 2010
Graphics
Lilian Ngoyi 2012
Project history
Damen Stan Patrol 4708 design. Patrol and environmental protection duties. Coast Guard.
Modernizations
None.
Naval service
No significant events.
