DOMINICA
COAST GUARD
MELVILLE patrol boat (1984)
Melville 1993
Ships
| Names | Builders | Commissioned | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
P04 Melville, 1992- D-4 Melville |
Swiftships, Morgan City, USA: P04 |
1984: P04 |
none |
none |
2017-18: P04 |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 34 |
| Length, m | 20.0 |
| Breadth, m | 5.58 |
| Draught, m | 1.52 |
| No of shafts | 2 |
| Machinery | 2 General Motors Detroit Diesel 12V71TI diesels |
| Power, h. p. | 1350 |
| Max speed, kts | 23 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 500(18) |
| Armament | small arms |
| Electronic equipment | Raytheon 1210 radar |
| Complement | 6 |
Graphics

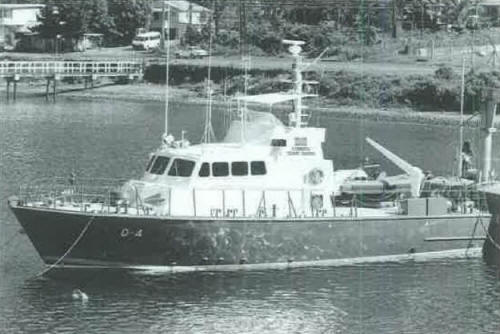

Melville 1993
MELVILLE patrol boat (1984)
Project history
US 65ft Commercial Cruiser class, aluminium construction.
Modernizations
none
Naval service
No significant events.
