RPL60 utility landing craft (1985-1986)





RPL60 2001

Ships


Name No Yard No Builder Laid down Launched Comp Fate
  RPL60   North SY, Singapore   11.1985 1986 in service (2019)
  RPL61   North SY, Singapore   11.1985 1986 in service (2019)
  RPL62   STM, Jurong 5/1985 10.1985 2.11.1985 in service (2019)
  RPL63   STM, Jurong 5/1985 10.1985 2.11.1985 in service (2019)
  RPL64   STM, Jurong       cancelled
  RPL65   STM, Jurong       cancelled


Technical data


Displacement standard, t

150

Displacement full, t

320

Length, m

33.0 pp 36.0 oa

Breadth, m

8.50

Draught, m

2.50

No of shafts

2 vertical cycloidal

Machinery

2 Deutz-MAN D2540MLE diesels

Power, h. p.

860

Max speed, kts

10

Fuel, t

diesel oil

Endurance, nm(kts)
Armament

none

Military load

2 light tanks or 450 troops or 110 t cargo

Electronic equipment

radar

Complement

6



Graphics

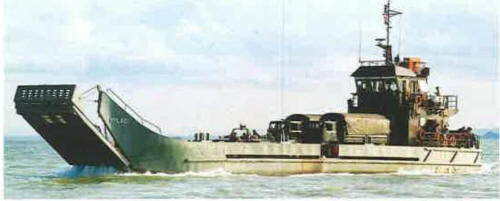

<i>RPL60 </i>2001
RPL60 2001


Project history

Ramped Powered Lighter. 26.5x6.6m opened cargo deck.

Modernizations

None.

Naval service

No significant events.
