Intrépido 2000

Ships

Names	Builders	Commissioned	Losses	Transfers	Discarding
SS20 Intrépido SS21 Indomable SS23 Roncador SS24 Quitasueño	COSMOS, Livorno, Italy: SS20, 21, 23, 24	1973: SS20, 21 1974: SS23, 24	none	none	1981: SS23, 24 2013: SS20, 21

Technical data

Displacement standard, t
Displacement normal, t	58 / 70
Length, m	23.0
Breadth, m	2.00
Draught, m	4.00
No of shafts	1
Machinery	1 diesel-generator, 1 electric motor
Power, h. p.	300
Max speed, kts	8.5 / 7
Fuel, t	diesel oil
Endurance, nm(kts)	1200(7) / 60(7)
Armament	6 Mk 21 mines (300kg warhead), 8 Mk 11 mines (50kg warhead), 2 submarine vehicles
Electronic equipment	none
Complement	5 + 8 combat swimmers
Diving depth operational, m	150

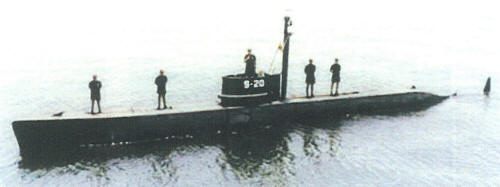

Graphics

Project history

Italian SX506 type. 8 fully equipped combat swimmers can use two submarine vehicles supported by a fixed system on lower part of the hull, one on each side. They were served by special drydock/tender Mayor Jaime Arias.

Modernizations

None.

Naval service

No significant events.
