MANTA RAY patrol boats (2000)

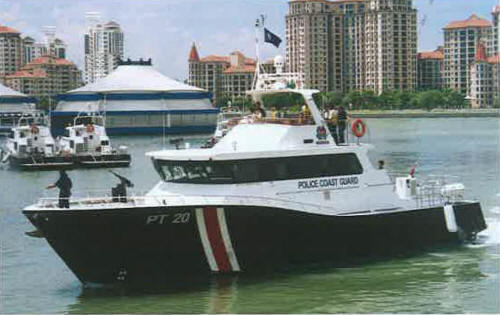

Manta Ray 2002
Ships
| Names | Builders | Commissioned | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
PT20 Manta Ray PT30 Eagle Ray |
Geraldton Boats, Australia: PT20, 30 |
2000: PT20, 30 |
none |
None | in service (2019): PT20, 30 |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | |
| Length, m | 20.0 |
| Breadth, m | 6.00 |
| Draught, m | 1.00 |
| No of shafts | 2 waterjets |
| Machinery | 2 MTU 16V2000 M90 diesels |
| Power, h. p. | |
| Max speed, kts | 30 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | |
| Armament | 2 x 1 - 7.6/90 |
| Electronic equipment | radar |
| Complement | 5 |
Graphics
Manta Ray 2002
Project history
Maritime Police (Coast Guard). Aluminium construction. Command boats for PT21 class.
Modernizations
None.
Naval service
No significant events.
