B-94 submarines (project 641) (1958 - 1983)

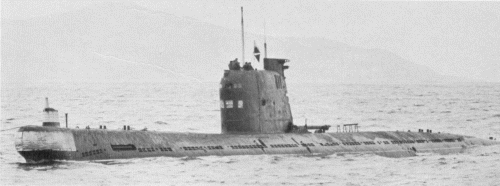

Project 641 1979

Ships


Name No Yard No Builder Laid down Launched Comp Fate Modification
Б-94 [B-94]   763 196 Yd (Sudomekh), Leningrad 3.10.1957 28.12.1957 25.12.1958 stricken 4.1990 Project 641
Б-95 [B-95]   764 196 Yd (Sudomekh), Leningrad 2.2.1958 25.4.1958 30.9.1959 stricken 4.1990 Project 641
Б-36 [B-36]   765 196 Yd (Sudomekh), Leningrad 29.4.1958 31.8.1958 30.9.1959 stricken 8.1993 Project 641
Б-37 [B-37]   766 196 Yd (Sudomekh), Leningrad 18.7.1958 5.11.1958 5.11.1959 explosion 11.1.1962 Project 641
Б-133 [B-133], 4.1970- Б-833 [B-833]   769 196 Yd (Sudomekh), Leningrad 27.9.1958 26.1.1959 5.11.1959 stricken 4.1990 Project 641
Б-135 [B-135]   770 196 Yd (Sudomekh), Leningrad 20.12.1958 30.3.1959 5.11.1959 stricken 4.1990 Project 641
Б-139 [B-139], 4.1970- Б-839 [B-839]   771 196 Yd (Sudomekh), Leningrad 25.2.1959 30.5.1959 15.3.1960 stricken 4.1990 Project 641
Б-57 [B-57]   777 196 Yd (Sudomekh), Leningrad 23.4.1959 15.8.1959 28.7.1960 stricken 6.1991 Project 641
Б-116 [B-116], 8.1977- Б-326 [B-326]   778 196 Yd (Sudomekh), Leningrad 9.6.1959 10.10.1959 25.8.1960 stricken 9.1994 Project 641
Б-130 [B-130]   779 196 Yd (Sudomekh), Leningrad 22.8.1959 17.12.1959 22.9.1960 stricken 6.1993 Project 641
Б-143 [B-143]   780 196 Yd (Sudomekh), Leningrad 21.10.1959 17.2.1960 5.11.1960 stricken 6.1991 Project 641
Б-85 [B-85]   781 196 Yd (Sudomekh), Leningrad 23.12.1959 19.3.1960 23.12.1960 stricken 4.1990 Project 641
Б-59 [B-59]   786 196 Yd (Sudomekh), Leningrad 21.2.1960 6.6.1960 10.6.1961 stricken 4.1990 Project 641
Б-156 [B-156], 4.1970- Б-856 [B-856]   787 196 Yd (Sudomekh), Leningrad 20.4.1960 2.8.1960 18.4.1961 stricken 4.1990 Project 641
Б-4 [B-4], 1.1963- Б-4 Челябинский комсомолец [B-4 Cheliabinskiy Komsomolets]   788 196 Yd (Sudomekh), Leningrad 14.6.1960 3.10.1960 31.8.1961 stricken 6.1991 Project 641
Б-153 [B-153], 4.1970- Б-854 [B-854]   790 196 Yd (Sudomekh), Leningrad 6.8.1960 31.1.1961 30.9.1961 stricken 7.1992 Project 641
Б-164 [B-164]   791 196 Yd (Sudomekh), Leningrad 26.10.1960 18.2.1961 16.10.1961 stricken 7.1992 Project 641
Б-33 [B-33]   792 196 Yd (Sudomekh), Leningrad 3.2.1961 27.4.1961 27.11.1961 foundered 25.1.1991 Project 641
Б-7 [B-7]   793 196 Yd (Sudomekh), Leningrad 14.4.1961 29.6.1961 15.12.1961 stricken 4.1990 Project 641
Б-105 [B-105]   794 196 Yd (Sudomekh), Leningrad 1.7.1961 1.10.1961 15.6.1962 stricken 8.1993 Project 641
Б-169 [B-169]   795 196 Yd (Sudomekh), Leningrad 17.8.1961 29.11.1961 28.7.1962 stricken 4.1990 Project 641
Б-38 [B-38], 4.1970- Б-838 [B-838]   796 196 Yd (Sudomekh), Leningrad 30.10.1961 31.1.1962 30.9.1962 stricken 4.1989 Project 641
Б-53 [B-53], 4.1970- Б-853 [B-853]   797 196 Yd (Sudomekh), Leningrad 8.1.1962 12.4.1962 5.11.1962 stricken 4.1990 Project 641
Б-50 [B-50]   798 196 Yd (Sudomekh), Leningrad 7.3.1962 15.6.1962 8.12.1962 stricken 7.1992 Project 641
Б-8 [B-8]   799 196 Yd (Sudomekh), Leningrad 9.5.1962 21.7.1962 18.12.1962 stricken 4.1990 Project 641
Б-31 [B-31]   800 196 Yd (Sudomekh), Leningrad 18.8.1962 3.11.1962 25.6.1963 stricken 6.1991 Project 641
Б-2 [B-2]   801 196 Yd (Sudomekh), Leningrad 27.10.1962 25.1.1963 14.6.1963 stricken 6.1991 Project 641
Б-55 [B-55], 4.1970- Б-855 [B-855]   802 196 Yd (Sudomekh), Leningrad 22.1.1963 5.4.1963 20.9.1963 stricken 7.1992 Project 641
Б-98 [B-98]   806 196 Yd (Sudomekh), Leningrad 4.4.1963 15.6.1963 15.5.1964 to Poland 11.1987 (Wilk) Project 641
Б-101 [B-101]   807 196 Yd (Sudomekh), Leningrad 19.6.1963 30.8.1963 29.5.1964 stricken 6.1993 Project 641
Б-6 [B-6]   808 196 Yd (Sudomekh), Leningrad 9.8.1963 30.11.1963 30.7.1964 stricken 8.1994 Project 641
Б-15 [B-15]   809 196 Yd (Sudomekh), Leningrad 10.10.1963 21.2.1964 30.9.1964 stricken 10.1992 Project 641
Б-103 [B-103]   810 196 Yd (Sudomekh), Leningrad 14.12.1963 16.4.1964 24.12.1964 stricken 6.1991 Project 641
Б-109 [B-109]   811 196 Yd (Sudomekh), Leningrad 22.2.1964 17.6.1964 15.4.1965 stricken 9.1994 Project 641
Б-107 [B-107], 4.1970- Б-807 [B-807]   812 196 Yd (Sudomekh), Leningrad 18.4.1964 25.7.1964 28.4.1965 stricken 8.1995 Project 641
Б-112 [B-112]   813 196 Yd (Sudomekh), Leningrad 19.6.1964 27.10.1964 5.8.1965 stricken 4.1990 Project 641
Б-25 [B-25], 4.1970- Б-825 [B-825]   814 196 Yd (Sudomekh), Leningrad 26.8.1964 22.12.1964 6.9.1965 stricken 7.1992 Project 641
Б-21 [B-21], 4.1970- Б-821 [B-821], 4.1989- Б-821 Брянский комсомолец [B-821 Briznskiy Komsomolets], 2.1992- Б-821 [B-821]   815 196 Yd (Sudomekh), Leningrad 29.10.1964 16.2.1965 31.10.1965 stricken 7.1995 Project 641
Б-9 [B-9]   816 196 Yd (Sudomekh), Leningrad 26.12.1964 31.3.1965 30.11.1965 stricken 7.1997 Project 641
Б-26 Ярославский комсомолец [B-26 Yaroslavskiy Komsomolets], 4.1970- Б-826 Ярославский комсомолец [B-826 Yaroslavskiy Komsomolets], 2.1992- Б-826 [B-826]   817 196 Yd (Sudomekh), Leningrad 6.5.1965 10.8.1965 24.3.1966 stricken 6.1991 Project 641
Б-28 [B-28]   818 196 Yd (Sudomekh), Leningrad 24.5.1965 10.8.1965 18.6.1966 stricken 6.1993 Project 641
Б-34 [B-34]   819 196 Yd (Sudomekh), Leningrad 13.8.1965 16.11.1965 31.7.1966 stricken 6.1991 Project 641
Б-40 [B-40], 4.1970- Б-840 [B-840]   820 196 Yd (Sudomekh), Leningrad 24.9.1965 16.11.1965 6.9.1966 stricken 6.1993 Project 641
Б-29 [B-29]   821 New Admiralty, Leningrad 25.3.1966 20.5.1966 28.11.1966 to Poland 12.1988 (Dzik) Project 641
Б-41 [B-41]   822 New Admiralty, Leningrad 7.4.1966 20.5.1966 24.12.1966 stricken 8.1993 Project 641
Б-46 [B-46]   823 New Admiralty, Leningrad 13.8.1966 24.12.1966 30.6.1967 stricken 6.1993 Project 641
Б-49 [B-49]   200 New Admiralty, Leningrad 12.10.1966 24.12.1966 30.6.1967 stricken 6.1993 Project 641
Б-39 [B-39]   210 New Admiralty, Leningrad 9.2.1967 15.4.1967 28.12.1967 stricken 7.1994 Project 641
Б-397 [B-397]   215 New Admiralty, Leningrad 7.5.1967 22.8.1967 31.12.1967 stricken 6.1993 Project 641
Б-400 [B-400], 12.1987- Б-400 Ульяновский комсомолец [B-400 Ulyanovskiy Komsomolets]   220 New Admiralty, Leningrad 29.5.1967 22.8.1967 25.9.1968 stricken 9.1991 Project 641
Б-413 [B-413]   235 New Admiralty, Leningrad 28.6.1968 7.10.1968 25.12.1968 preserved 7.2000 Project 641
Б-416 [B-416]   240 New Admiralty, Leningrad 18.7.1968 25.2.1969 4.12.1969 stricken 7.1992 Project 641
Б-205 [B-205]   245 New Admiralty, Leningrad 17.6.1969 29.8.1969 28.12.1969 stricken 7.1996 Project 641
Б-213 [B-213]   250 New Admiralty, Leningrad 1.10.1969 20.1.1970 4.8.1970 stricken 6.1993 Project 641
Б-435 [B-435]   260 New Admiralty, Leningrad 24.3.1970 29.5.1970 6.11.1970 to Ukraine 7.1997 (Запорiжжя [Zaporizhzhia]) Project 641
Б-440 [B-440]   265 New Admiralty, Leningrad 1.6.1970 16.9.1970 25.12.1970 stricken 11.1999 Project 641
Б-409 [B-409]   270 New Admiralty, Leningrad 18.12.1970 2.3.1971 10.9.1971 stricken 6.1993 Project 641
Б-427 [B-427]   275 New Admiralty, Leningrad 10.4.1971 22.6.1971 4.12.1971 stricken 4.1994 Project 641
Б-51 [B-51]   205 New Admiralty, Leningrad 27.12.1966 15.4.1967 26.9.1967 to India 12.1967 (कलवरी [Kalvari]) Project I641
Б-401 [B-401]   225 New Admiralty, Leningrad 5.10.1967 29.2.1968 19.9.1968 to India 12.1968 (खंडेरी [Kandhera]) Project I641
Б-405 [B-405]   230 New Admiralty, Leningrad 24.1.1968 28.4.1968 2.7.1969 to India 9.1969 (करंज [Karanj]) Project I641
Б-402 [B-402]   255 New Admiralty, Leningrad 25.12.1968 25.2.1969 5.9.1969 to India 12.1969 (कुरसूर [Kursura]) Project I641
Б-456 [B-456]   01280 Admiralty, Leningrad 28.9.1971 28.1.1972 10.10.1972 to India 8.1973 (वेला [Vela]) Project I641K
Б-470 [B-470]   01285 Admiralty, Leningrad 29.4.1972 7.7.1972 5.7.1973 to India 11.1973 (वअगिर [Vagir]) Project I641K
Б-464 [B-464]   01290 Admiralty, Leningrad 1.2.1973 19.4.1973 16.12.1973 to India 8.1974 (वग्लि [Vagli]) Project I641K
Б-522 [B-522]   01295 Admiralty, Leningrad 28.9.1973 27.3.1974 20.9.1974 to India 12.1974 (वग्शीर [Vagsheer]) Project I641K
Б-533 [B-533]   01296 Admiralty, Leningrad 23.12.1975 16.4.1976 8.10.1976 to Lybia 12.1976 (الفاتح [Al Fateh]) Project I641K
Б-311 [B-311]   01297 Admiralty, Leningrad 26.9.1976 17.2.1977 15.9.1977 to Lybia 2.1978 (الأحد [Al Ahad]) Project I641K
Б-330 [B-330]   01298 Admiralty, Leningrad 5.3.1977 20.5.1977 27.10.1977 to Lybia 3.1978 (الحنين [Al Hunain]) Project I641K
Б-309 [B-309]   01299 Admiralty, Leningrad 14.4.1978 11.9.1978 10.12.1978 to Cuba 2.1979 (725) Project I641K
Б-586 [B-586]   01205 Admiralty, Leningrad 27.3.1979 27.6.1979 30.11.1979 to Cuba 1.1980 (727) Project I641K
Б-590 [B-590]   01206 Admiralty, Leningrad 5.4.1980 14.7.1980 21.11.1980 to Lybia 2.1982 (المتراجع [Al Mitraga]) Project I641K
Б-587 [B-587]   01207 Admiralty, Leningrad 12.3.1981 19.6.1981 25.10.1981 to Lybia 4.1982 (البدر [Al Badr]) Project I641K
Б-588 [B-588]   01208 Admiralty, Leningrad 26.2.1982 11.6.1982 28.9.1982 to Lybia 2.1983 (الخيبر [Al Khyber]) Project I641K
Б-510 [B-510]   01209 Admiralty, Leningrad 3.3.1983 10.7.1983 20.10.1983 to Cuba 2.1984 (729) Project I641K


Technical data


Displacement standard, t



Displacement normal, t

1952 / 2475

Length, m

91.3

Breadth, m

7.50

Draught, m

5.09

No of shafts

3

Machinery

763-822: 3 37D diesels / 1 PG-102 + 2 PG-101 electric motors

others: 3 2D42 diesels / 1 PG-102 + 2 PG-101 electric motors

Power, h. p.

763-822: 6000 / 5400 (2700 + 2x1350)

others: 5700 / 5400 (2700 + 2x1350)

Max speed, kts

16.8 / 16

Fuel, t

diesel oil

Endurance, nm(kts)

30000(8.1) / 400(2)

Armament

pr. 641, I641: 10 - 533 TT (6 bow, 4 stern, 22 or 32 mines)

pr. I641K: 6 - 533 TT (bow, 12), 4 - 400 TT (stern, 10)

Electronic equipment

763-264: Flag radar, MG-200 Arktika-M, Tuloma, MG-10 Kola, Svet-M sonars, Nakat ECM suite

others: Flag radar, MG-200 Arktika-M, Tuloma, MG-10M Kola-M, Svet-M sonars, Nakat ECM suite

Complement

77

Diving depth operational, m

250



Standard scale images

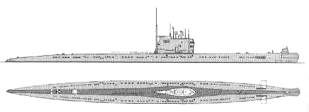

<i>B-94 </i>1958
B-94 1958
<i>B-36 </i>1990
B-36 1990


Graphics


Project 641 1979
Project 641 1979


Project history

This was the large-submarine analog to Project 633, designed from the outset to snorkel. It had the same sonar suit as Project 633, with the new Leningrad-641 torpedo FCS. Compared to Project 611, Project 641 could dive deeper (250m, maximum 280m) and had greater range.

Modernizations

1967, B-103: + MVU-110 Uzel CCS

1970s, many: - Flag radar; + RLK-101 Albatros radar

1970s, B-101: + wake detector

Naval service

B-37 was lost 11.1.1962 at Poliarnyy after own torpedo explosion. B-164 was severely damaged during training diving in Japanese Sea in JUne 1989, her repair was never completed. B-33 was foundered at pier in Ulyss Bight (Vladivostok) due to negligence of her crew, she was salvaged in summer and stricken. B-435 was transferred to Ukraine in July 1997 and lost battle value in 2000s. 22.3.2014 she raised Russian flag. In March 2014 submarine was offered by Russia back to Ukraine with no pay but Ukraine refused the deal and now submarine is stored afloat at Sevastopol.
