KHRABRYY gunboat (1897)

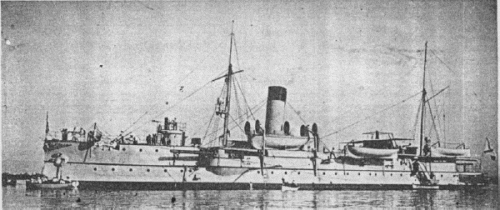

Khrabryy 1899

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Храбрый [Khrabryy], 12.1922- Красное Знамя [Krasnoe Znamya]     New Admiralty, St. Petersburg 12.1894 22.11.1895 9.1897 accommodation ship 3.1959


Technical data


Displacement normal, t

1735

Displacement full, t

2100

Length, m

70.2 pp 72.3 oa

Breadth, m

12.7

Draught, m

3.40 norm 3.81 max

No of shafts2
Machinery

2 VTE, 8 Niclausse boilers

Power, h. p.

2100

Max speed, kts

14

Fuel, t

coal 200

Endurance, nm(kts)1200(7)
Armour, mmHarvey steel; belt: 127 - 70, bulkhead: 38, shields: 38, deck: 38 - 25, CT: 25
Armament

2 x 1 - 203/43, 1 x 1 - 152/44 Canet, 5 x 1 - 47/40 Hotchkiss, 4 x 1 - 37/20 Hotchkiss, 1 - 450 TT (aw, bow), 20 mines

Complement

178 - 188



Standard scale images


<i>Krasnoye Znamya</i> 1940
Krasnoye Znamya 1940
<i>Khrabryy</i> 1904
Khrabryy 1904


Graphics


<i>Krasnoe Znamya</i> 1940s
Krasnoe Znamya 1940s
<i>Khrabryy</i> 1899
Khrabryy 1899


Project history

Armoured, seaworthy gunboat intended for service in Baltic Sea. Built under the 1891 program. In 1937-1939 she passed major repairs and modernization in which course the forecastle was lengthened, superstructure completely altered, and all 130mm guns were installed on the centre line, new fire control system was fitted.

Ship protection

Main belt (55 x 1.52m) had 127mm thickness abreast machinery (tapering to 76mm at lower edge), its thickness decreased to 102mm abreast CT and partly main gun, to 76mm between machinery and stern and to 70mm at short part fwd from main gun, fore end of belt was closed by 38mm bulkhead. Main 25mm deck was connected with upper edge of main belt and fore part of hull outside citadel was protected by turtleback-shaped 38mm deck. CT had 25mm sides and roof. 203mm and 152mm guns had 38mm protection.

Modernizations

1915: - 2 x 1 - 203/43, 1 x 1 - 152/44, 5 x 1 - 47/40, 4 x 1 - 37/20; + 6 x 1 - 105/42 SK L/45 C/11

1916: - 6 x 1 - 105/42; + 5 x 1 - 130/53, 1 x 1 - 76/28 Lender

1917: - 1 x 1 - 76/28; + 11 x 1 - 47/40 Hotchkiss, 2 x 1 - 7.6/94

1939: hull and superstructure were rebuilt; - 5 x 1 - 130/53, 11 x 1 - 47/40, 2 x 1 - 7.6/94, 1 - 450 TT; + 5 x 1 - 130/50 B-13, 6 x 1 - 45/43 21K, 2 x 1 - 12.7/79, 50 mines at all

1942: + 1 x 1 - 37/63 70K, 2 x 4 - 12.7/62

Naval service

Krasnoye Znamya 18.11.1942 was sunk at Lavensaari by Finnish MTBs Syoksy, Vinha and Vihuri; she was salvaged 5.11.1943 and commissioned again 17.9.1944. 7.4.1956 ship was re-classified as TS; disarmed 13.3.1959 and converted to accommodation ship and sold for scrap 30.6.1960.
