No1 torpedo boat (1885)





No101

Ships


Names Builders Completed Losses Transfers Discarding

№1, 8.1886- Котлин [Kotlin], 4.1895- №101

Carr & McFerson, St. Petersburg: №1

1885: №1

none

none

1906: №101



Technical data


Displacement normal, t

67

Displacement full, t68
Length, m

38.0 pp 38.8 oa

Breadth, m

3.94

Draught, m

1.37 max

No of shafts

2

Machinery

2 VC, 1 locomotive boiler

Power, h. p.

472

Max speed, kts

16.5

Fuel, t

coal 14

Endurance, nm(kts)600(10)
Armament

2 x 5 - 37/17 Hotchkiss, 2 - 381 TT (bow)

Complement21


Standard scale images


<i>Kotlin </i>1892
Kotlin 1892


Graphics

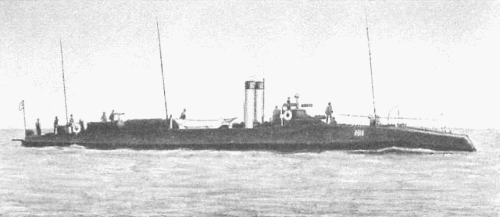

<i>No101</i>
No101


Project history

Bow rounded at top with a spur, deck curved with fore part raised to form a cover for two fixed bow TT. Two funnels abreast. TT difficult to reload, and not a success as 18kts intended.

Modernizations

None.

Naval service

No significant events.
