NOVIK 2nd class cruiser (1901)





Novik Many thanks to Wolfgang Stöhr for additional information on this page.

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Новик [Novik]   656 Schichau, Danzig, Germany 12.3.1900 15.8.1900 17.12.1901 scuttled 20.8.1904, to Japan (鈴谷 [Suzuya])


Technical data


Displacement normal, t

3000

Displacement full, t3080
Length, m

106.0 pp 109.9 wl 110.5 oa

Breadth, m

12.2

Draught, m

5.00 max

No of shafts

3

Machinery

3 VTE, 12 Schultz-Thornycroft boilers

Power, h. p.

17800

Max speed, kts

25

Fuel, t

coal 500

Endurance, nm(kts)

3500(10)

Armour, mmNickel steel; deck: 38 with 51mm slopes, glacis: 70, shields: 25, CT: 30 (Krupp steel)
Armament

6 x 1 - 120/43 Canet, 6 x 1 - 47/40 Hotchkiss, 2 x 1 - 37/20 Hotchkiss, 5 - 381 TT (aw, 4 beam, 1 stern)

Complement

328

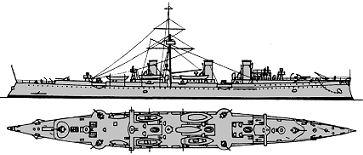

Standard scale images


<i>Novik </i>1903
Novik 1903


Graphics


<i>Novik</i> <i>Many thanks to Wolfgang Stöhr for additional information on this page.</i>
Novik Many thanks to Wolfgang Stöhr for additional information on this page.


Project history

A three-funnelled cruiser with a single mast between the second and third funnels, and a ram bow. The Novik was lightly built as a much enlarged destroyer. The 120mm guns were mounted fore and aft with two on either beam. For her day the Novik was a very fast ship and attained 19,000ihp - 25.6kts on trials.

Ship protection

There was a 38mm deck with 51mm slopes and to 70mm over the top of the engines.

Modernizations

None.

Naval service

Novik was scuttled 20.8.1904 at Korsakovsk in Sakhalin after an action with the light cruiser Tsushima and was later salved by the Japanese and served in their navy as Suzuya.

Many thanks to Wolfgang Stöhr for additional information on this page.
