QC601 patrol launches (2006)
2003
Ships
| Names | Builders | Completed | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
QC601 QC742-744 QC746 |
CMN, Cherbourg, France: QC601, 742-744, 746 |
2006: QC601, 742-744, 746 |
none |
none |
in service (2020): QC601, 742-744, 746 |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 12 |
| Length, m | 15.5 |
| Breadth, m | 3.00 |
| Draught, m | 0.80 |
| No of shafts | 2 |
| Machinery | 2 diesels |
| Power, h. p. | 1100 |
| Max speed, kts | 53 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 400(35) |
| Armament | 1 x 1 - 12.7/90 |
| Electronic equipment | Furuno radar |
| Complement | 4 |

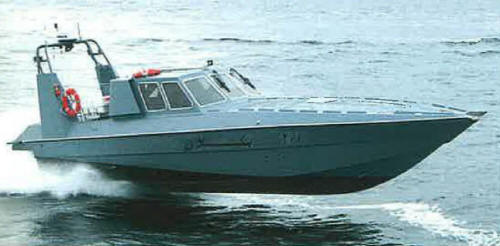

Graphics
2003
Project history
DV15 class.
Modernizations
None.
Naval service
No significant events.
