CUCUT patrol craft (1991/2002)





Jupiter 2002

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Cucut (ex-Jupiter) 866   SSE, Singapore   3.4.1990 19.8.1991 // 23.3.2002 in service (2019)


Technical data


Displacement standard, t140
Displacement full, t170
Length, m33.4 pp 35.8 oa
Breadth, m7.10
Draught, m2.30
No of shafts2
Machinery

2 Deutz-MWM TBD234 V12 diesels

Power, h. p.1360
Max speed, kts

14

Fuel, t

diesel oil

Endurance, nm(kts)200(14)
Armament

1 x 1 - 20/90 GAM-B01, 2 x 1 - 12.7/90

Electronic equipment

Decca 1226 radar

Complement33


Graphics

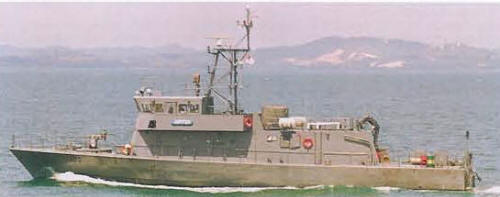

<i>Jupiter </i>2002
Jupiter 2002


Project history

Decommissioned from the Singapore Navy during September 2001 and transferred in 2002 for use as a patrol craft. Sophisticated multipurpose craft originally capable of performing mine-clearance route survey work, acting as a diving tender, or assisting in salvage operations. Carries a towed side-scan high-resolution sonar and has an underwater data logging system and precision navigation equipment. To assist divers, has a two-man decompression chamber and two high-pressure compressors. Carries a ten-man rigid inflatable dinghy with a 60hp engine, handled by a 1.5t crane. Designed with German assistance.

Modernizations

None.

Naval service

No significant events.
