CASMA submarines (1980-1983)

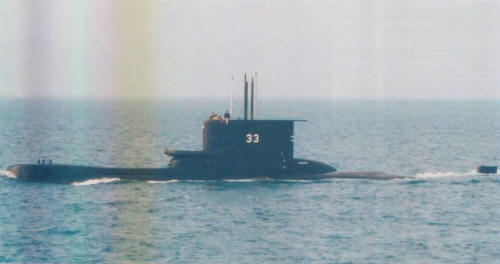

Pisagua 2004
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| Casma, 8.1998- Angamos | 31 | Howaldtswerke, Kiel, West Germany | 15.7.1977 | 31.8.1979 | 19.12.1980 | in service (2019) | |
| Antofagasta | 32 | Howaldtswerke, Kiel, West Germany | 3.10.1977 | 19.12.1979 | 22.5.1981 | in service (2019) | |
| Pisagua | 33 | Howaldtswerke, Kiel, West Germany | 15.8.1978 | 19.5.1981 | 8.4.1982 | in service (2019) | |
| Chipana (ex-Blume) | 34 | Howaldtswerke, Kiel, West Germany | 1.11.1978 | 7.8.1981 | 18.3.1983 | in service (2019) |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement normal, t | 1185 / 1300 |
| Length, m | 56.1 |
| Breadth, m | 6.20 |
| Draught, m | 5.50 |
| No of shafts | 1 |
| Machinery | 4 MTU 12V493 TY60 diesel-generators, 1 Siemens electric motor |
| Power, h. p. | 2280 / 5000 |
| Max speed, kts | 11 / 21 |
| Fuel, t | diesel oil 63 |
| Endurance, nm(kts) | 11300(4) / 400(4) |
| Armament | 8 - 533 TT (bow, 14 SST-4) |
| Electronic equipment | Calypso radar, CSU-3Z sonar suite, PRS-3/4 sonar, ECM suite, SINBAD M8 CCS |
| Complement | 31 |
| Diving depth operational, m | 250 |
Standard scale images
Casma 1990
Graphics
Pisagua 2004
Project history
German Type 209/1200 modified.
Modernizations
2012-2016, all: - CSU-3Z sonar suite, PRS-3/4 sonar; + CSU-83 sonar suite, PRS-3/15 sonar, also SUT-264 torpedoes can be used
Naval service
No significant events.
